Product Features

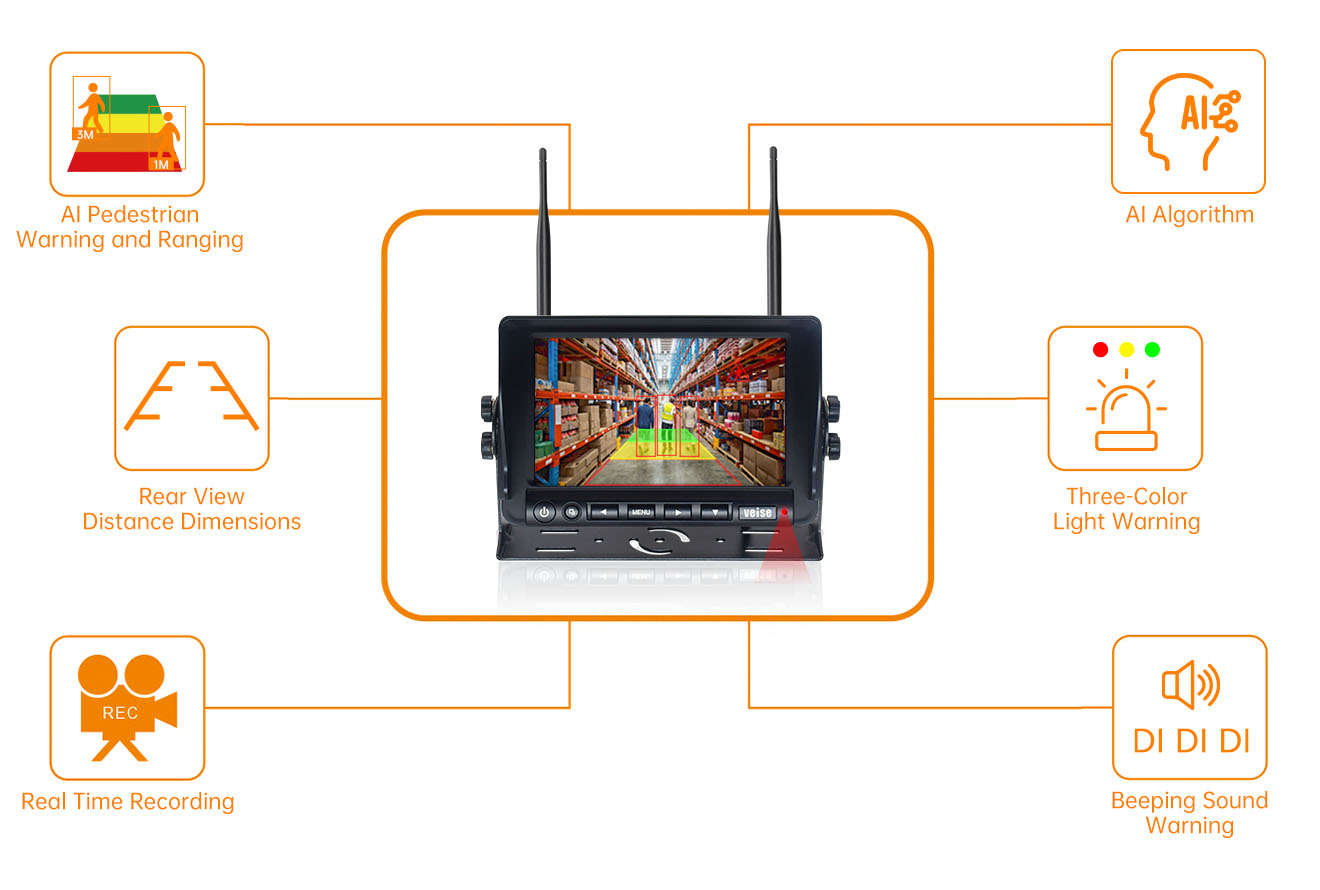

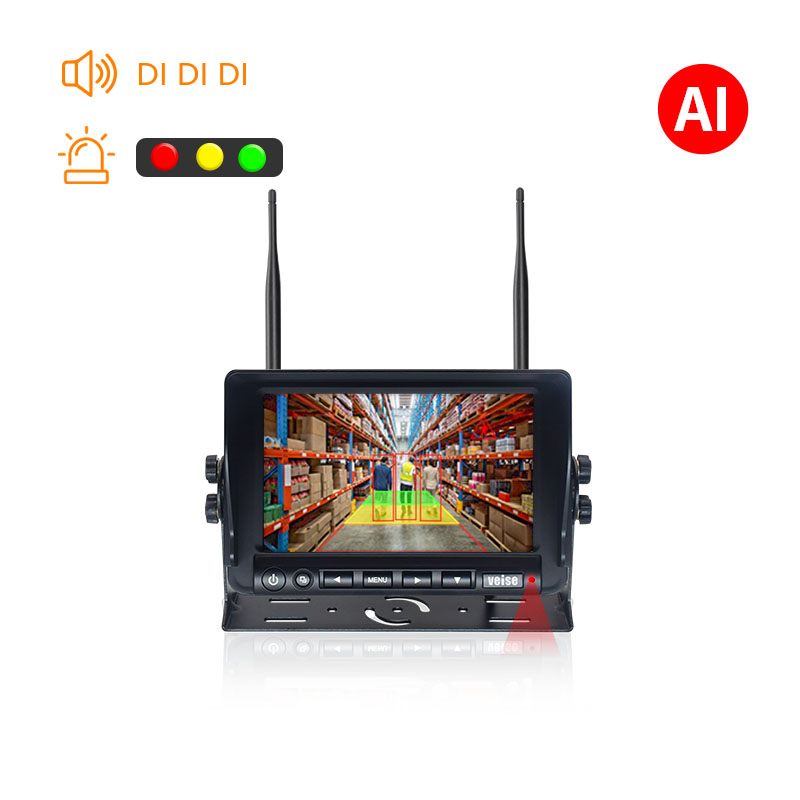

Wireless HD Monitor
7-inch digital screen display with built-in 2.4GHz wireless receiver, 1024x600 high resolution and 600cd/㎡ high-brightness screen.
Multi-frequency hopping code pairing to prevent frequency interference, open area transmission distance of 200 meters.
Automotive-grade industrial DSP, graphical OSD menu for setting mirror and normal image, reverse parking scale, and trigger priority application functions.
The bracket is made of rust-proof metal material, with a U-shaped + bilateral tightening anti-vibration design.
Wide operating voltage range of DC 11-32V, pulse voltage circuit design for load shedding, reverse connection protection circuit design, and LED thermal response constant current and constant voltage protection circuit design to avoid damage from improper use, automotive pulse voltage, and ensure product quality.

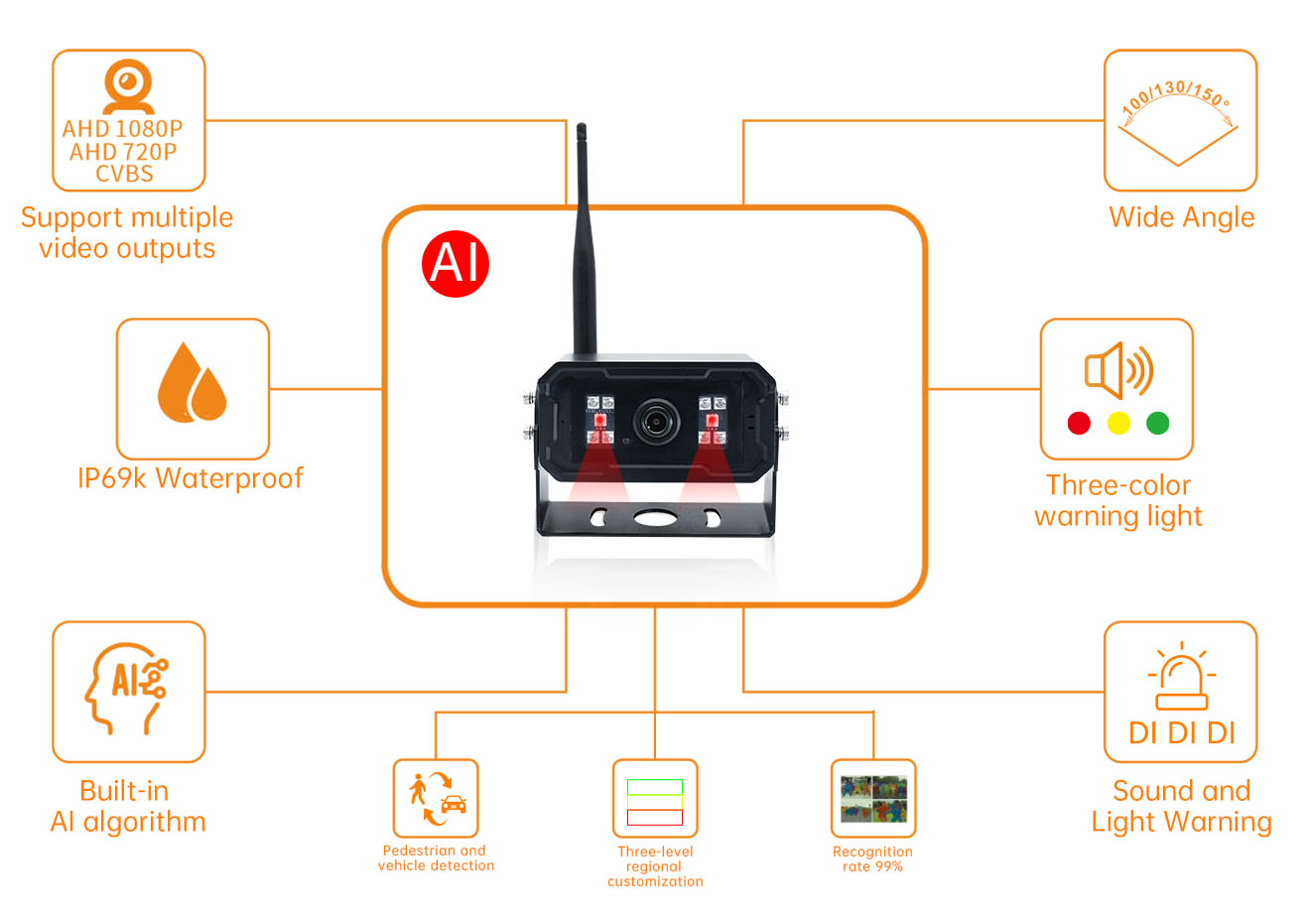

AI Humanoid Analysis Wireless Camera

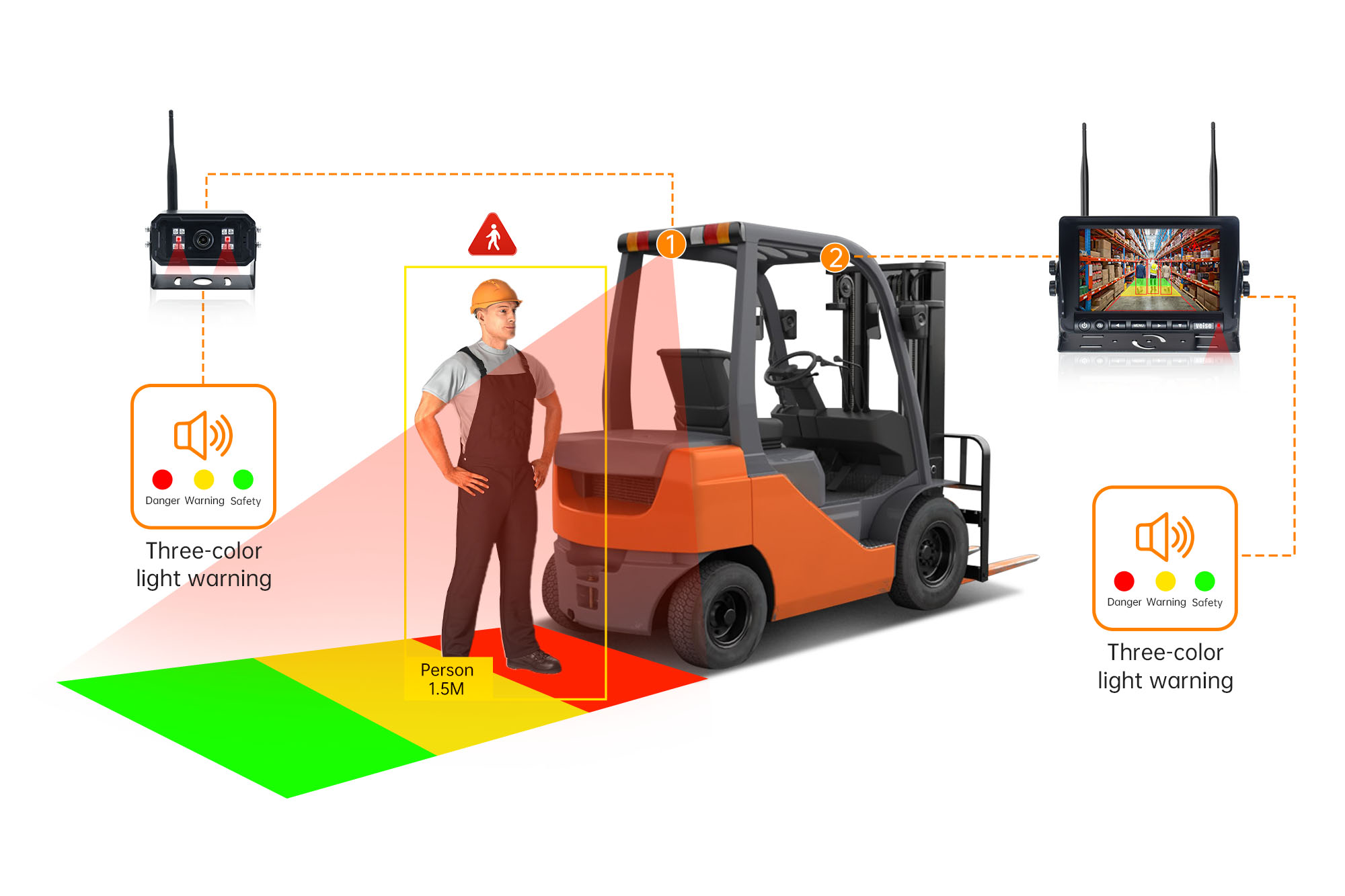

It is mainly used to monitor whether there are people entering the areas where entry is prohibited or specific areas;
The AI humanoid analysis camera is based on cloud-based intelligent recognition algorithms, which can learn and recognize specific limb movements of people. It can accurately identify humans in complex environments and push AI PWM pulse warning signals to the relevant monitoring systems for safety alerts;
AI Warning Prompts: 1-3 levels (green light flashing for level 1, yellow light flashing for level 2, red light constantly on for level 3);
Sound Reminder: Built-in buzzer
100° ultra-wide-angle lens, automotive-grade DSP, 2 million high-definition pixels, IP69K waterproof rating, cold-resistant and waterproof signal tail wires.
Wide Angle View
The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.
Product Parameters
| Model | Wireless HD Monitor (MWHD-774M-AI) |
| Color LCD Screen | 7-inch IPS screen |
| Wireless Reception | Built-in 2.4G wireless receiver |
| Picture Mode | 1/2/3/4 picture modes |
| AI Warning | Supports AI warning function prompts for 1/2/3/4 picture modes |
| Operating Frequency | 2400-2483.5MHz |
| Reception Sensitivity | ≤-86 dB |
| Reception Distance | Open area ≤ 200 meters |
| Resolution | 1024x(RGB)x600 |
| Color System | PAL/NTSC (AUTO) |
| Brightness (cd/m²) | 600 |
| Load Dump | ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms) |
| Vibration Resistance Rating | 5G (Complies with GB-T2423056-2006 standard) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC 11-32V |
| Dimensions (L x W x T) | 218 x 150 x 54mm |
| Model | AI Wireless Camera (CWHD-732MAI) |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Distance | Open area ≤ 200 meters |
| Image Sensor | 1/2.9 Color CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Horizontal Resolution | 1080P |
| Viewing Angle | 100° |
| AI Warning Signal Output | 1-3 levels (Green light - Safe, Yellow light - Caution, Red light - Danger) |
| Sound Reminder | Built-in buzzer |
| Detection Target | Pedestrian/non-motorized vehicle detection and warning |
| Signal-to-Noise Ratio | ≥38dB (AGC Off) |
| Housing Material | Aluminum alloy |
| Water Resistance Rating | IP69K |
| Operating Voltage | DC 10-32V ± 10% |
| Operating Temperature | -20°C to +60°C, RH 95% Max |
| Storage Temperature | -30°C to +70°C, RH 95% Max |
| Vibration Resistance Rating | 5G (Complies with GB-T2423056-2006 standard) |
| Body Interface | DC female connector |
| Product Dimensions | 74(W) x 64(H) x 56(D) mm |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
