360 Degree Active Safety Surround View Camera + 8-Channel Video All-in-One(4G Version)

360 Degree Active Safety Surround View Camera System

with 8-Channel Video All-in-One(4G Version)

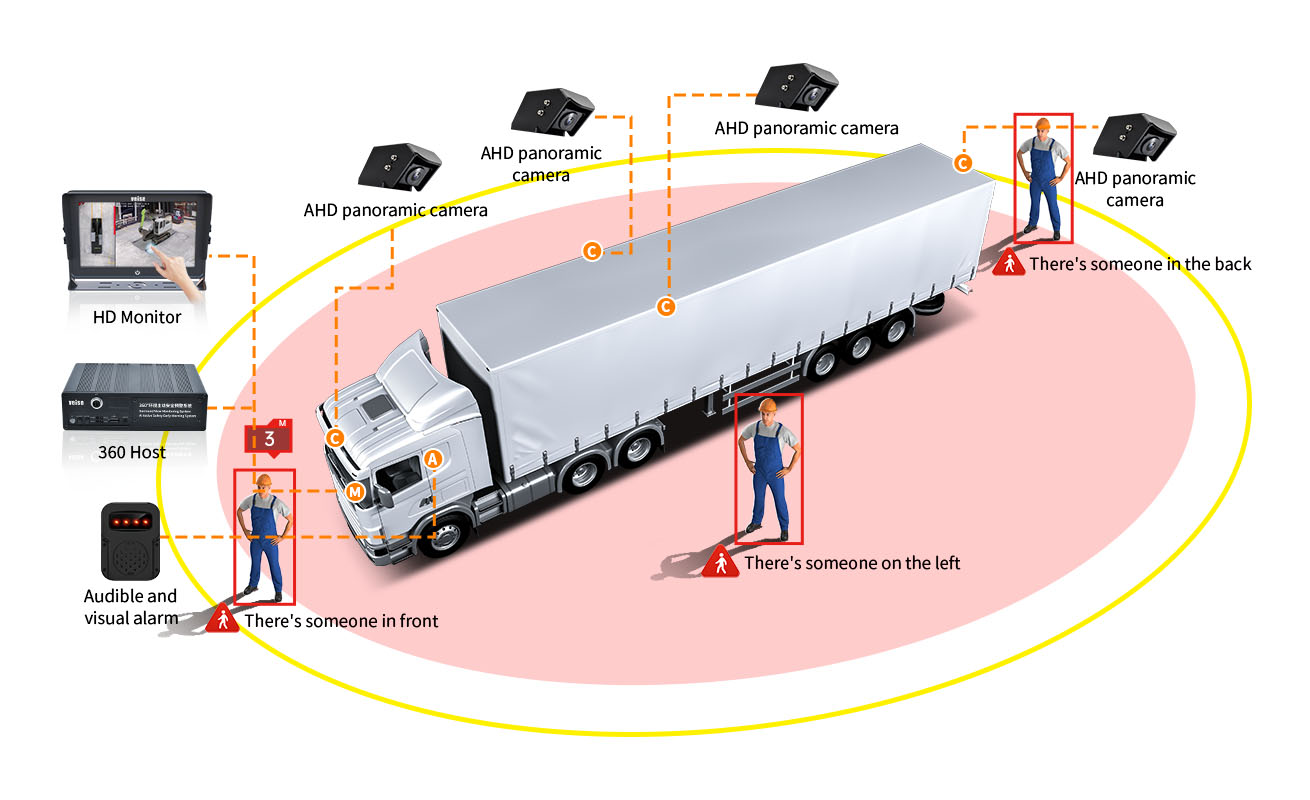

Dangers of Large Vehicle Blind Spots

Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.

Pedestrian & Vehicle Detection

It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time.  (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)

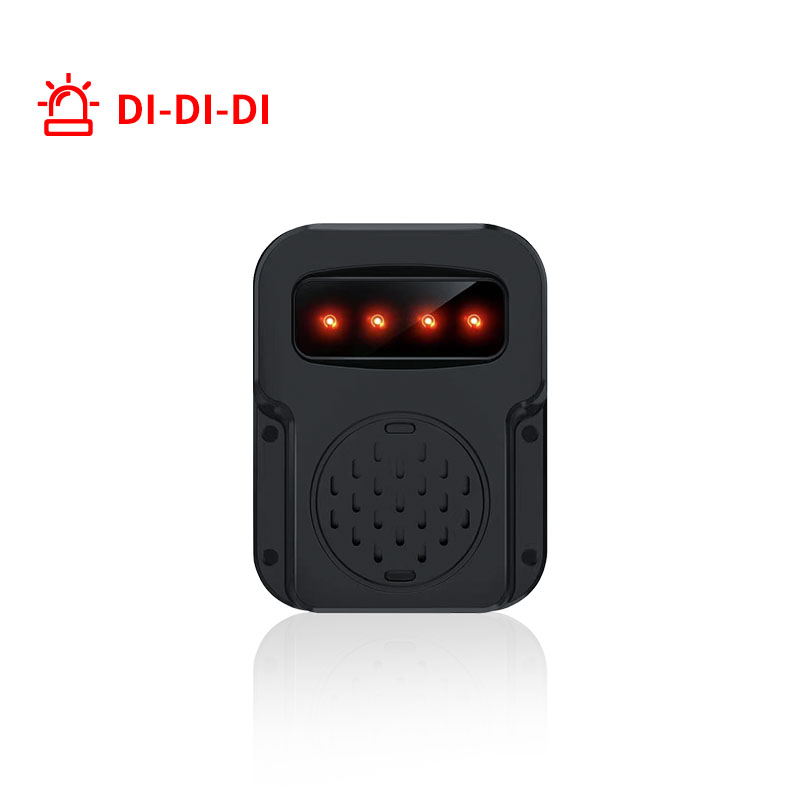

Blind Spot Audible And Visual Alarm Warning driver

Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. AI pedestrian vehicle detecting and warning camera to capture personnel in the monitoring area in real time, It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver.

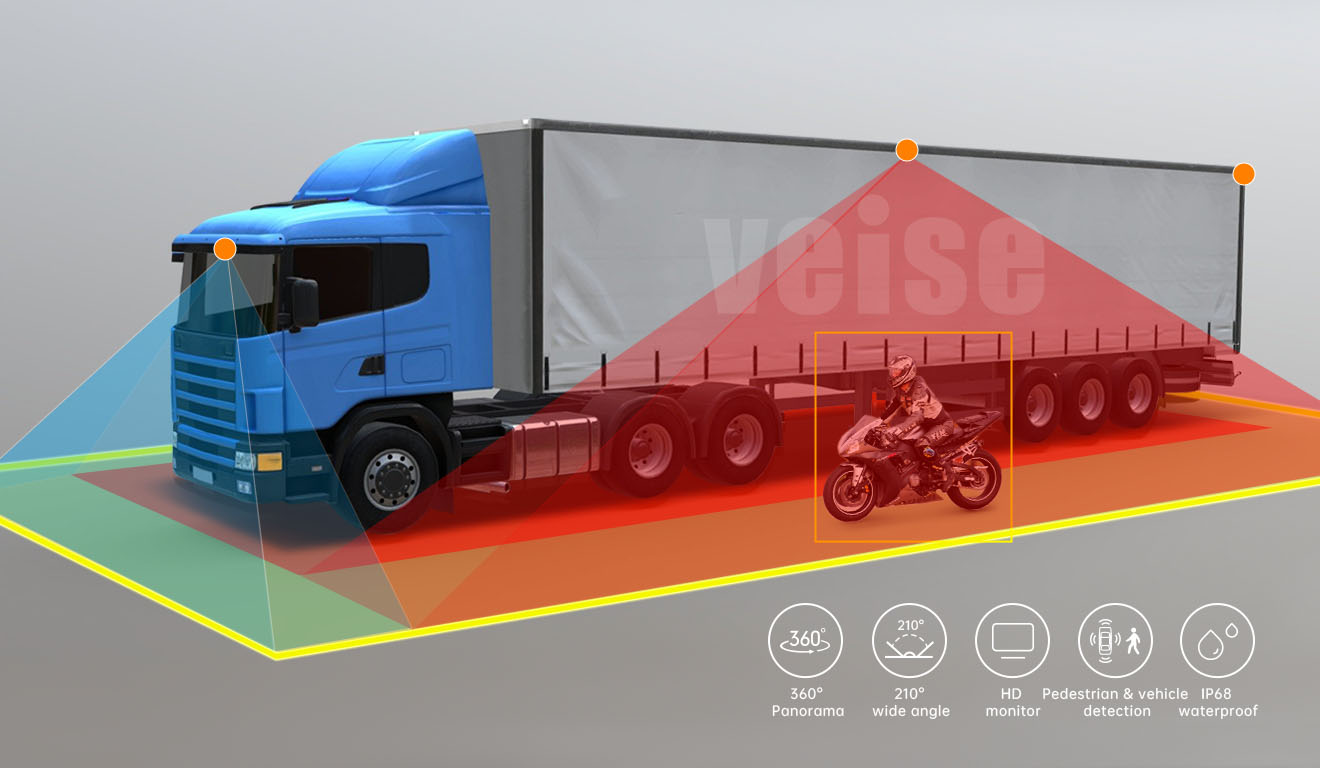

Wide Angle View

The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.

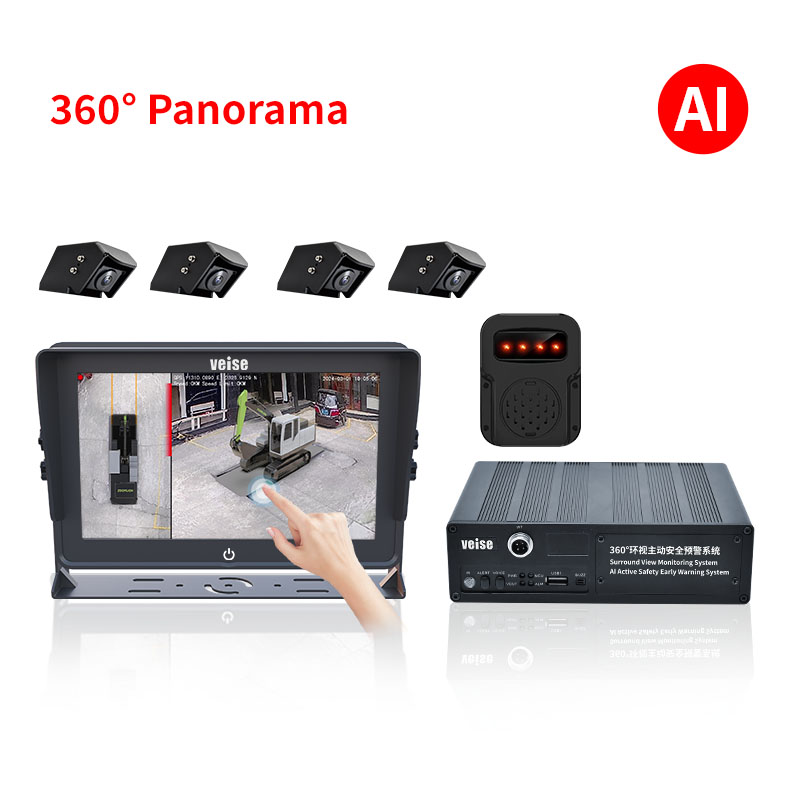

Product Features

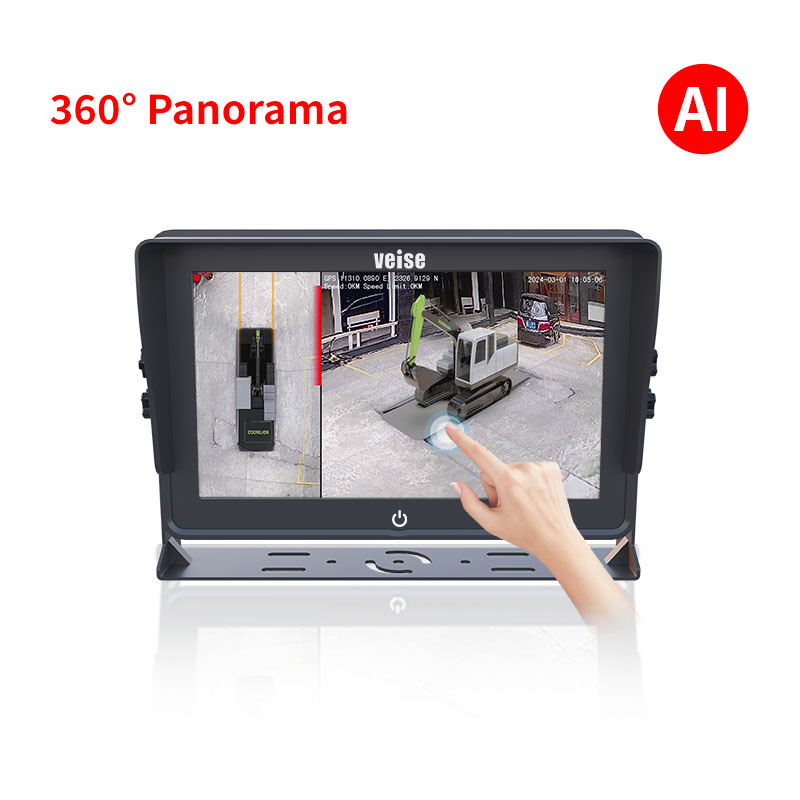

HD monitor:

1. Display: Equipped with a 10.1-inch 1024x600 high-resolution LCD screen for clear display.

2. Housing: Made of aluminum alloy for stable structure and excellent heat dissipation.

3. Operation: Supports touch screen functionality for sensitive and quick operation.

4. Voltage Adaptation: Wide range voltage input DC11V-32V, suitable for various vehicles and mechanical equipment.

5. Safety Design: Built-in power reverse polarity protection circuit to prevent damage from incorrect operations.

6. Backlight Design: Built-in constant voltage and current circuit protection to extend service life.

7. Multilingual Support: Supports OSD menu operation in 10 languages.

8. Anti-vibration Design: Compact design, compliant with GB∕T 2423.56-2018 anti-vibration standards.

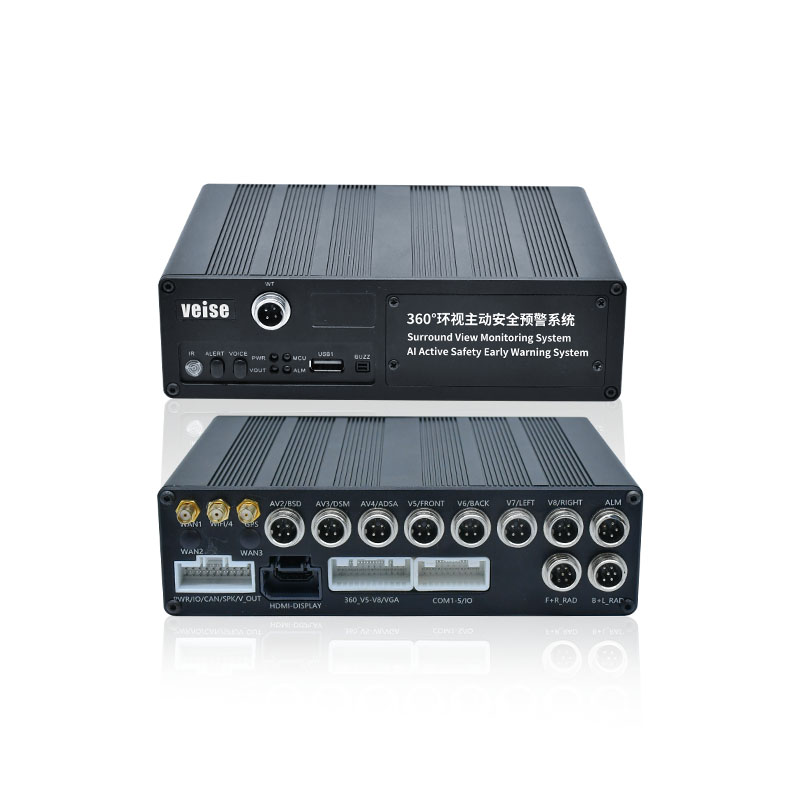

360 Host:

1. H9 Host supports multi-camera combination modes, capable of supporting 1080P/720P/D1 format cameras; supports 8-camera mode (4 audio/video + 4 360-degree video); supports 12-camera mode (4 audio/video + 4 video + 4 360-degree video with AI algorithm for pedestrian and vehicle recognition, early warning, and customizable alert areas).

2. The product has DMS (Driver Behavior Detection: fatigue driving, distractions such as smoking, phone calls, driver not in position, intentional obstruction) functionality, supports photo uploading to the platform, and report functions.

3. The product supports ADSA lane detection (lane departure, too close vehicle distance, pedestrian detection) functionality.

4. The product supports vehicle-mounted dome camera functionality, capable of remotely controlling the dome camera's 360-degree left and right rotation, 130-degree up and down rotation, and image zoom functions through the platform, making it a powerful tool for remote command.

5. The product supports fuel consumption, temperature and humidity, LED screens, audio and light alarms, various vehicle sensors; supports 10-channel input and output detection.

6. The product supports 4G + GPS positioning + video functions with standard + Tongtianxing protocol, enabling remote real-time video viewing, real-time location, driving trajectory, electronic fence, text issuance, voice intercom, and rich reporting functions.

7. The product has a 360-degree panoramic view image specifically developed for large vehicles, with its own large vehicle 360-degree stitching algorithm, integrated with the platform.

8. The product complies with the ISO - 7637 standard, complies with vehicle power specifications, uses a wide voltage design of DC10 - 36V, reverse polarity design, reinforced TVS + ESD design, and the main power is equipped with Farad capacitors to ensure the reliability of video recording during illegal power off.

9. The product supports various video outputs, supporting CVBS/HDMI/AHD.

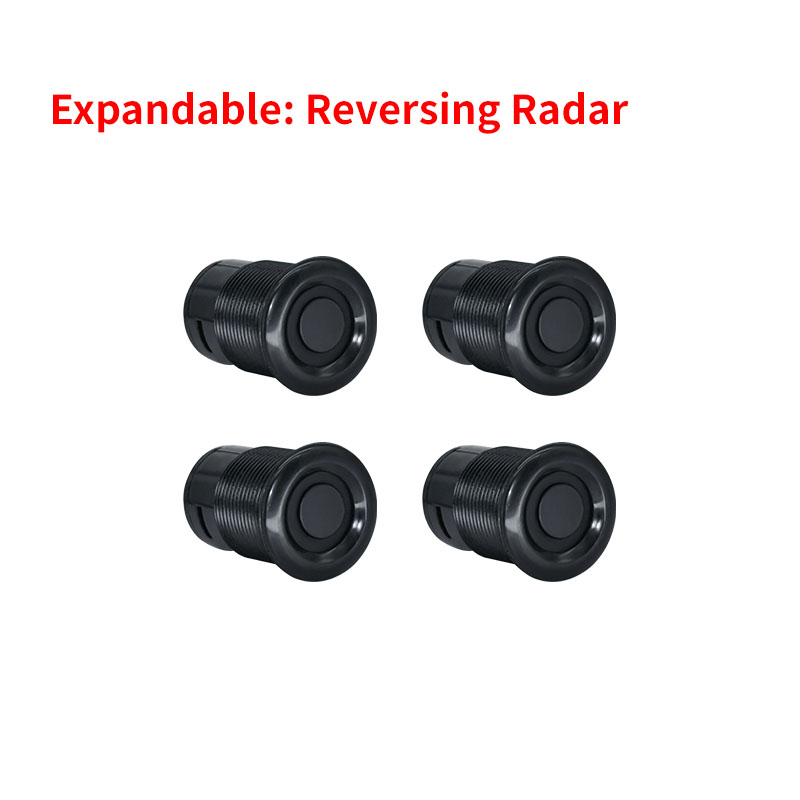

10. The product supports four-direction 16-probe ultrasonic radar, combined with vehicle speed sensors and proprietary algorithms, communicates with 360-degree panoramic view in real-time and integrates with the panoramic interface, with radar information displayed intuitively on the 360-degree panoramic interface, supporting 4-direction full blind spot (BSD) detection, and supporting Lane Change Assistance (LCA) functionality. Radar + 360 panoramic view + audio and light alarm, the three work together, with external audio and light reminders for vehicles and pedestrians, internal buzzer reminders for drivers, and the imaging system automatically switches to the corresponding scene perspective, achieving fully automatic active safety assistance functions.

11. The product supports CAN communication functionality, supporting communication between original vehicle data and 360-degree panoramic host, enabling interaction with original vehicle information such as control, touch, steering wheel angle, vehicle speed, radar, etc.

12. The product supports an intelligent voice control system specifically developed for large vehicle 360-degree panoramic imaging systems, allowing voice control of the 360-degree panoramic view to ensure driving safety.

13. The product supports bonfire defense functionality, which can be activated at any time through the defense switch. When activated, all vehicle radars activate a 0.35-meter protection distance. When someone or something approaches, the in-vehicle buzzer and external audio and light alarm provide simultaneous warnings, achieving anti-oil theft, anti-cargo theft, and automatic host startup recording functions.

14. The product features three storage designs, supporting dual SD card + 2.5-inch hard disk storage methods, which are compact, low power consumption, and shock-resistant.

15. In conjunction with our company's vehicle-specific display, it can achieve touch control and high-definition display functions.

AHD Panoramic Camera:

• 210° ultra-wide angle, vehicle-grade DSP, 2 million high-definition pixels, IP69K waterproof rating, starlight full color, cold-resistant and waterproof signal output cable.

Product Parameters

Monitor:

360 Mainframe: Model DF-3DH9AI-4G

Product Applications
