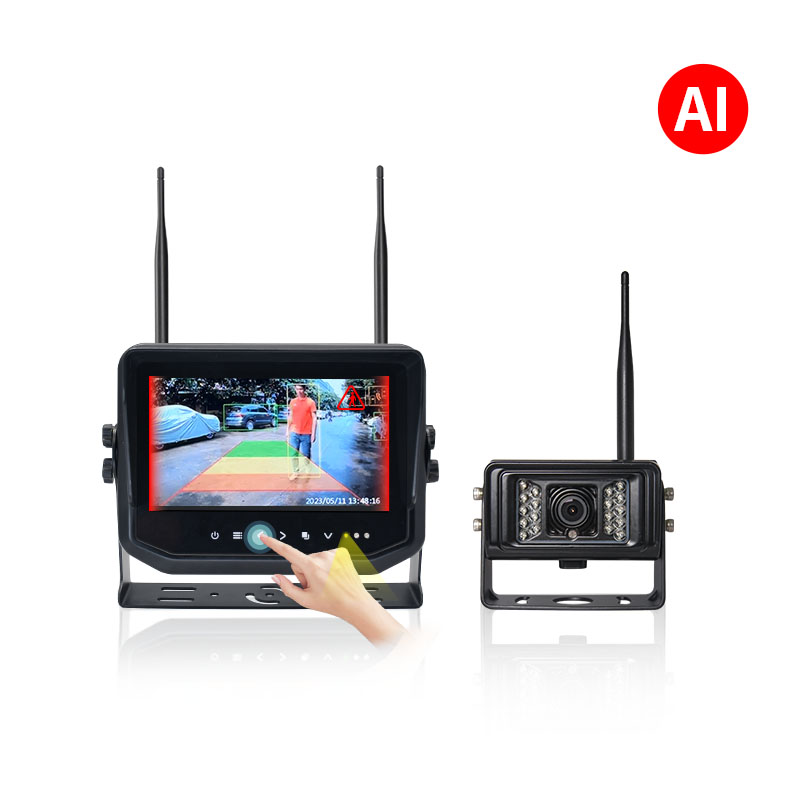

7-inch Waterproof Monitor Wireless AI Camera System

7-inch Waterproof Monitor Wireless AI Camera System

Model : MWHD-7184M151MLP1-AI

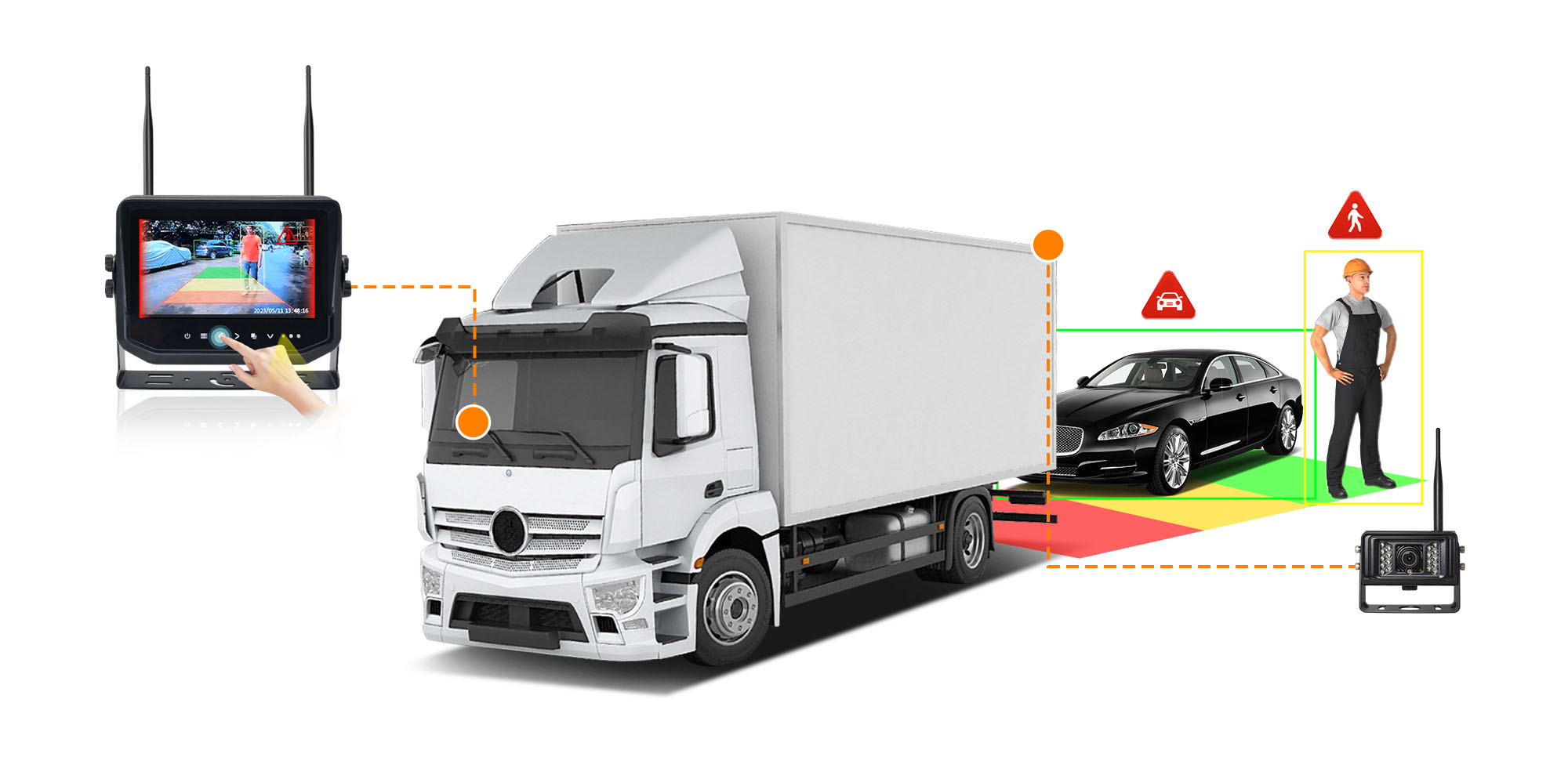

Summarize : Due to the highly concentrated operation required by the driver of the vehicle's mechanical equipment, there is no time to observe the on-board rearview monitor display screen, especially in the absence of reverse radar warning, which can easily lead to safety hazards and economic losses. The AI wireless in car driving detection pre system not only eliminates the complex installation process of wired rearview camera systems and reverse radar wiring, but also enables real-time detection of personnel and vehicles in the monitoring area, and provides icon and sound warning safety prompts - BSD function in real time. In this way, improving the efficiency of vehicle operation and eliminating safety hazards can avoid economic losses. The AI wireless waterproof monitor system is particularly suitable for safety monitoring of mechanical equipment and vehicle operations in special environmental conditions such as high humidity, rainy season, tunnels, and dust.

Product Description

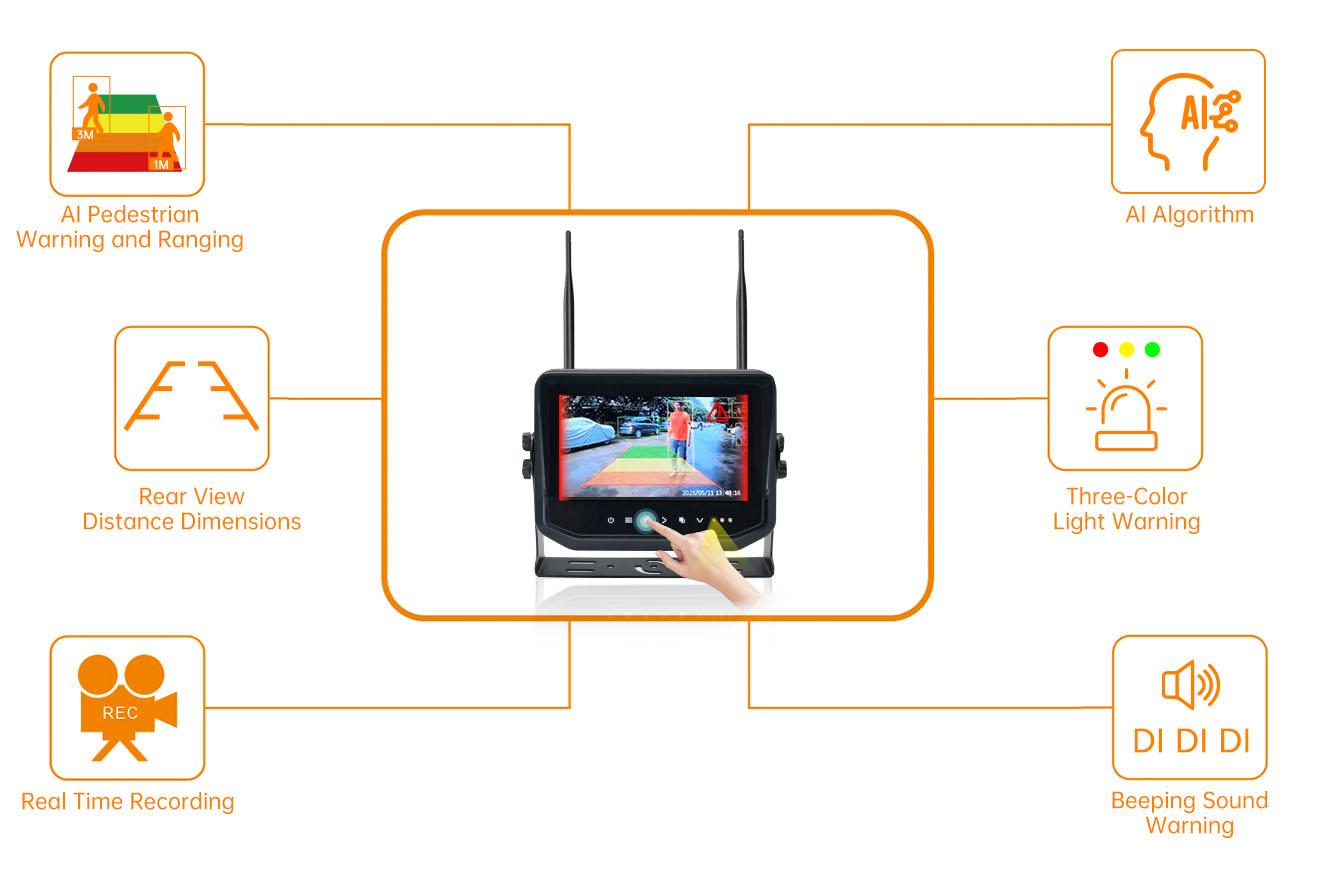

Product Features

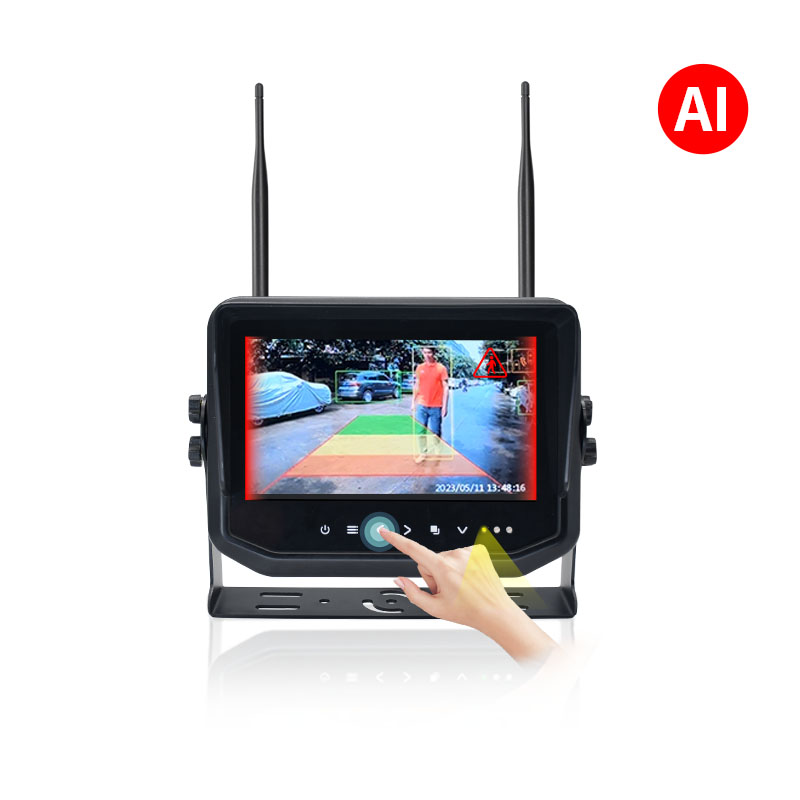

7-Inch HD Waterproof Wireless Monitor

Display Screen : 7-inch IPS screen with fast response speed, wide viewing angles, true colors.

AI Warning : AI Camera warning signals that trigger monitor's buzzer alarm and LED strobe light alerts on the monitor to remind the driver for safety alerts-Blind Spot Detection (BSD) .warning area can be settings （up/down, left/right)；

Display Screen Full lamination Process: The protective glass panel of the monitor and the display screen adopt a space free full lamination process structure to eliminate specular reflection and ensure clear and transparent image screens;

Appearance Patented Design: Fully sealed aluminum alloy structure and IP69K waterproof design;

Low Power Energy-saving Mode: The monitor wirelessly controls the standby and working power supply voltage of the wireless camera;

Wireless Transmission Distance: Up to 200m clear line of sight;

Protection Circuit Design: free operates voltage input DC 8-32V. pulse voltage protection against load disconnection,reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity;

Sunshade Patented Design: Detachable sunshade to prevent sunlight interference;

Bracket Patented Design: Rust-resistant metal material with U-shaped and dual-side fastening for vibration resistance.

AI Wireless Camera: automotive-grade DSP, 1 million HD pixels, starlight full-color, IP69K waterproof rating, and all-weather operation. Can be Used with a Power Supply Box

Product Parameters

7-inch HD Touch Button Wireless Monitor
Monitor Model	MWHD-7182MLP-AI	MWHD-7184M-AI
Screen	7-inch IPS HD touchscreen
Wireless Receiving	built-in 2.4G wireless receiver
Resolution	1024RGB(H) X 600(V)
Visible Angle	Up, down, left, right: 85°
Operating Frequency	2400~2483.5MHz
Receiving Sensitivity	≤86dBm
Transforming Distance	Up to 200m Clear Line of Sight
TV System	PAL/NTSC
Video input	2-CH	4-CH
Display Mode	Support single/dual Monitor	quad-screen
Pedestrian and Vehicle Detecting	Alarm after pedestrian and non-motor vehicle approaches the area
Area Warning Calibration	Customized settings for the warning area
Vibration rating	GB∕T 2423.56-2018 standard (random 5G vibration)
Operating Temperature	-20℃~+70℃
Storage Temperature	-30℃~+80℃
Operating Voltage	DC8-32V
Dimension	266.5X167.8X36.7（mm）
Installation	360° universal base car bracket

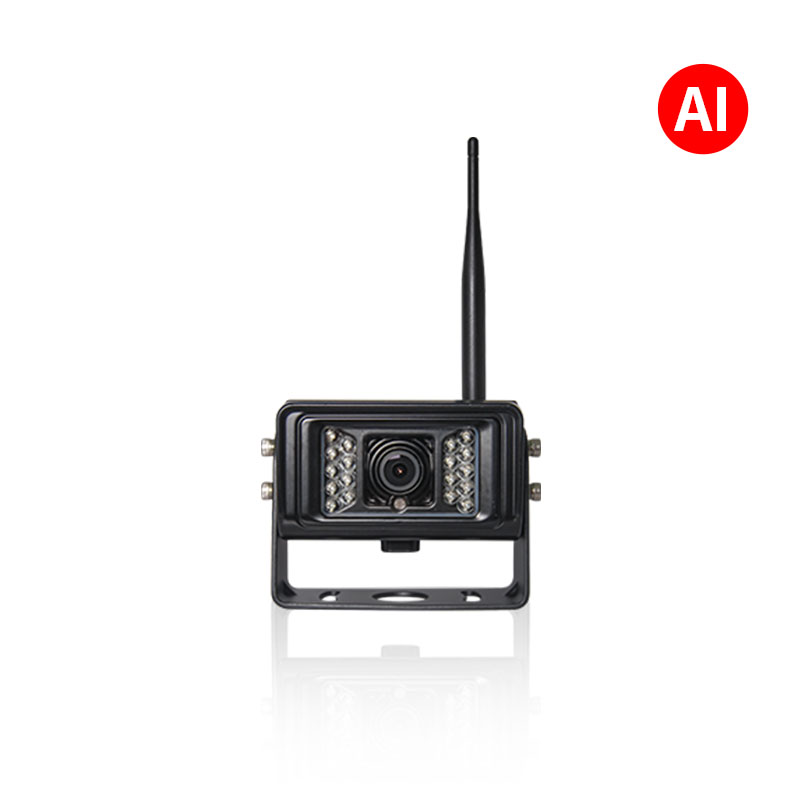

AI Wireless Backup Camera (CWHD-151M-AI)
Effective Pixels	1920(H) X1080(V)
Resolution	720P
Wireless Transmission	Built-in 2.4G wireless transmitter
Transmission Power	18dBm
Operating Frequency	2400~2483.5MHz
Transmission Distance	Up to 200m Clear Line of Sight
Visible Angle	130°
Waterproof Rating	IP69K
Pedestrian and Vehicle Detection	Support AI human and car model recognition
Power-saving Function	Standby current is as low as 10mA
Vibration rating	Meets the standard of GB/T2423.56-2008
Operating Temperature	-20℃~+60℃
Storage Temperature	-30℃~+70℃
Operating Voltage	DC8-32V
Dimension	91.6X75X71（mm）

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
