Product Features

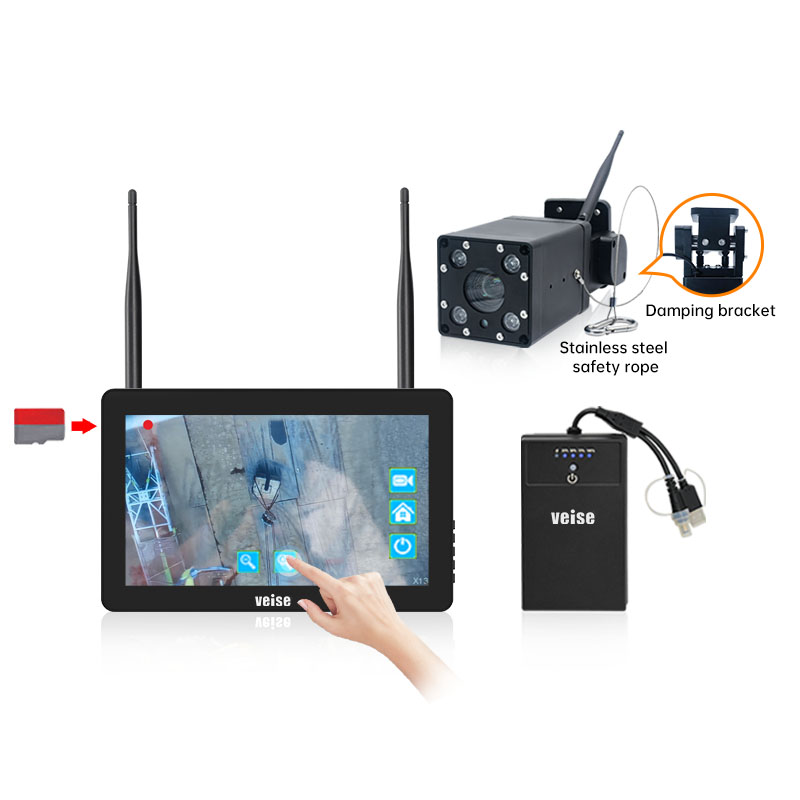

Wireless Zoom Video System Features:
Wireless Control for Easy Operation:
The wireless monitor supports image zooming in and out through buttons, foot pedals, or touch controls on the wireless camera.
Simple operation enables visual tasks, effectively improving work efficiency.
Enhances job safety by reducing operational risks.
Outstanding Performance of Wireless Zoom Camera:
Equipped with 20x optical zoom capability to meet observation needs at various distances.
Features four built-in infrared LED lights to enhance imaging effects in low-light environments.
Comes with an anti-shake gravity damping mount to effectively prevent image shaking caused by wind or high-altitude operations.
Strong stability ensures clear image output in various environments.

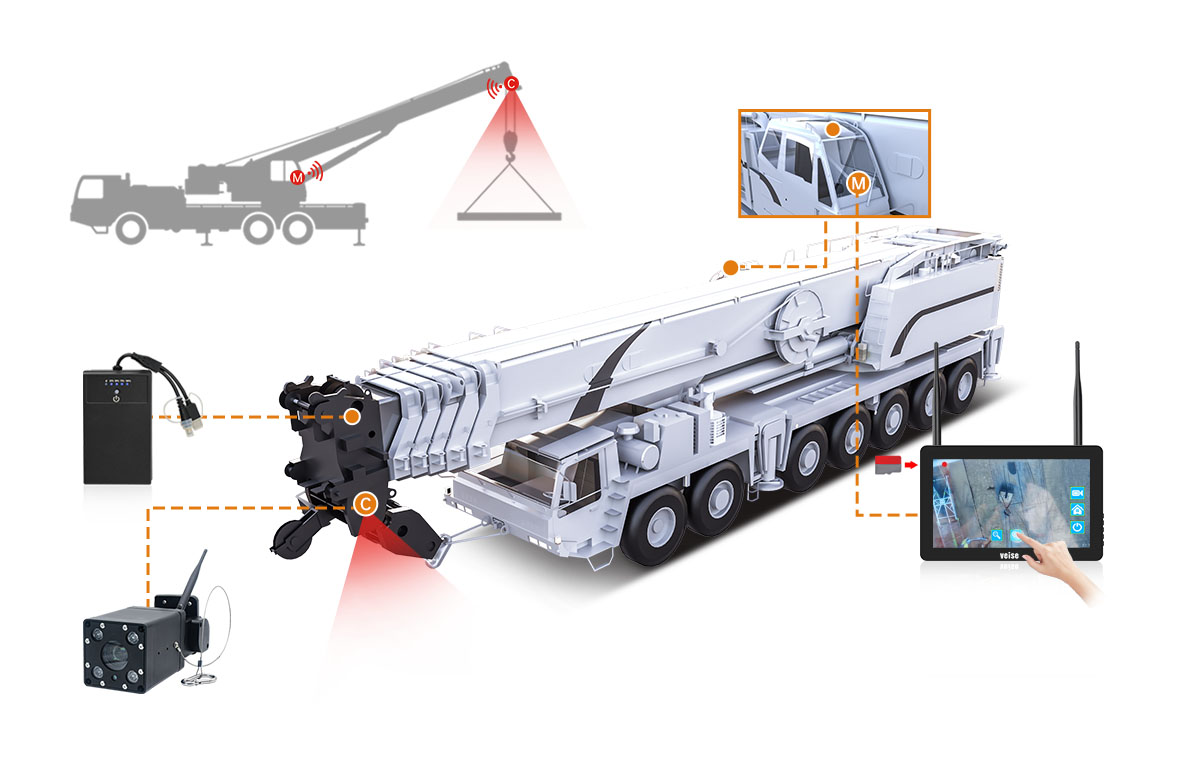

These features make the wireless zoom video system play a significant role in a variety of job scenarios, especially in situations requiring remote observation and precise operation.

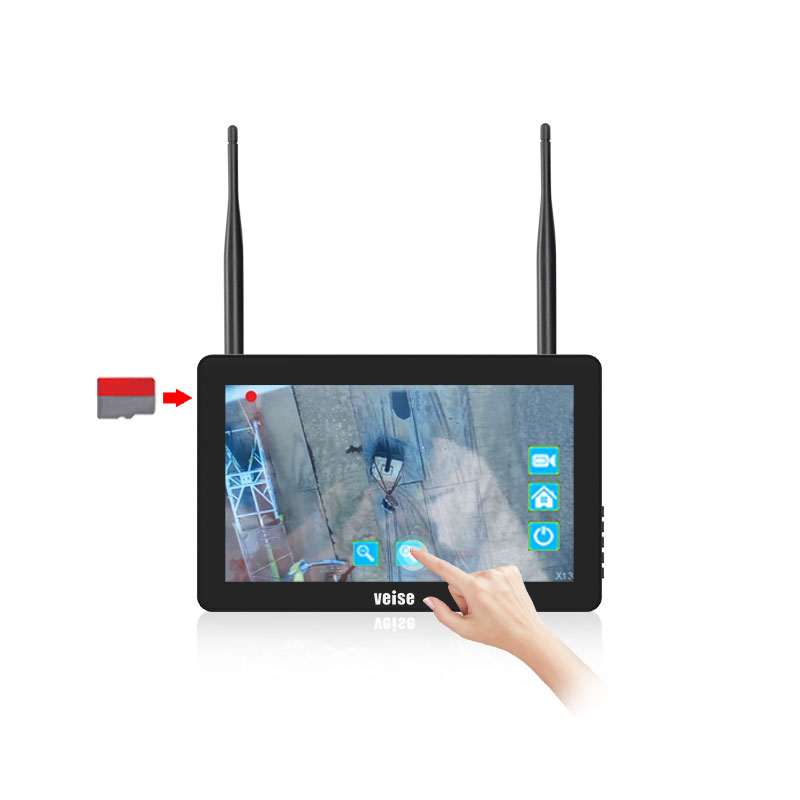

High Definition Touch Screen Monitor
Screen: Equipped with a 10.1-inch 1024x600 high-resolution LCD screen for clear display.
Housing Material: Made of aluminum alloy, providing a stable structure and excellent heat dissipation.
Operation Method: Supports both mechanical buttons and touch screen functions for sensitive and quick operation.
Storage Function: Supports TF cards from 16GB to 512GB (standard 64GB), with automatic overwrite of recording files.
Voltage Adaptation: Wide-range voltage input DC11V-32V, suitable for various vehicles and mechanical equipment.
Safety Design: Built-in power reverse polarity protection circuit to prevent damage from incorrect operation.
Backlight Design: Built-in constant voltage and current circuit protection to extend the service life.
Multi-View Display: Supports single, dual, triple, and quad screen display.
Picture Adjustment: Individual channel picture can be independently set for horizontal mirroring, supports upside-down installation and 180° picture rotation.
Vibration Resistance Design: Compact design, compliant with GB/T 2423.56-2018 vibration resistance standards.
1080P Digital Wireless 20x Zoom Camera
Zoom Function: Optical 20x zoom with digital image stabilization.
Viewing Range: Viewable distance from 5 to 200 meters, with 4 built-in LED infrared lights. The infrared light power automatically adjusts according to the zoom level, supporting 50 meters HD night vision.
Image Quality: Car-grade DSP, million high-definition pixels, IP69K waterproof rating, mechanically vertical bracket design, with anti-drop rope function.
Magnetic All-Aluminum Rechargeable Waterproof Portable Power Bank
Battery Capacity: 8000mAh fast-charging battery, supporting fast-charging protocols.
Design and Waterproofing: Magnetic adsorption design, IP67 waterproof rating, capable of powering the wireless zoom camera for up to 10 hours of use.
Product Parameters
| Model | High Definition Touch Screen Monitor (MWHD-1014HTP-AF) |
| Wireless Reception | Built-in 2.4G wireless receiver |
| Picture Mode | Single, Dual, Triple, and Quad screen display |
| Operating Frequency | 2400 to 2483.5 MHz |
| Receiving Sensitivity | ≤-86 dB |
| Receiving Range | Open space ≤200 meters |
| Display Screen | 10.1-inch IPS screen |
| Resolution | 1024×(RGB)×600 |
| Viewing Angle (Left/Right) | Left/Right: 85/85, Up/Down: 85/85 |
| Contrast Ratio | 800:1 |
| Brightness (cd/㎡) | 600 |
| Response Time (milliseconds) | 25 |
| Standard | PAL/NTSC (automatic) |
| Video Recording Function | Real-time recording (2GB per channel per hour) |
| Video File Format | AVI |
| Video Recording Capacity | Supports 16-512GB TF cards (standard 64G) |
| Load Dump | DC24+174V/350ms |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Power Supply | DC11-32V |
| Dimensions (LxWxH) | 265X168X37(mm) (without stand) |
| Model | 1080P Digital Wireless 20x Zoom Camera (CWHD-672H-20X) |
| Image Sensor | 1/2.8 Color |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Range | Open space ≤200 meters |
| Resolution | 1080P |
| Effective Pixels | 1920(H) x 1080(V) |
| Optical Zoom | 20x (Touch screen control zoom) |
| Focal Length | 5.35～96.3mm |
| Aperture | F1.6～F3.5 |
| Horizontal Angle of View | 64.1～3.6 degrees (Wide-angle - Telephoto) |
| Viewing Distance | 5-200 meters |
| Zoom Speed | Approximately 3 seconds (Optical, Wide-angle - Telephoto) |
| Focus Mode | Auto Focus |
| Day/Night Mode | IR-CUT automatic switching (Color in daytime, Black and white at night) |
| Infrared Distance | 50 meters (Built-in 4 high-power infrared lights) |
| Housing Material | Aluminum alloy, with anti-drop wire rope clip design |
| Mounting Bracket | Vertical gravity stainless steel bracket |
| Waterproof Rating | IP69K |
| Operating Voltage | DC12-24V |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Vibration Resistance | 5G (Compliant with GB-T2423056-2006 standard) |
| Dimensions | 220(W) x 90(H) x 90(D) mm |
| Model | Magnetic Rechargeable Portable Power Supply (MP-03B10W1) |
| Battery Type | Lithium Polymer Battery |
| Product Capacity | 30000mAh (3.7V) 111Wh |
| USB Input (Supports Fast Charging) | Universal USB port with protocol fast charging, 12V/1.5A (Full charge takes approximately 10.5 hours) |
| DC Output | DC12V/0.8A (DC5.5/2.1 male connector) |
| Charging Cycle Temperature | 0°C to +40°C |
| Charge/Discharge Cycles | >800 times |
| Discharge Operating Temperature | -10°C to +50°C |
| Anti-Drop Design | Anti-drop wire rope clip design |
| Mounting Method | Magnetic base mounting (Built-in 11 strong magnets, front horizontal pull force >20kg, side pull force >8kg) |
| Waterproof Rating | IP67 |
| Shock Resistance | 5G |
| Dimensions | 148(W) x 88(H) x 45.5(D) mm |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
