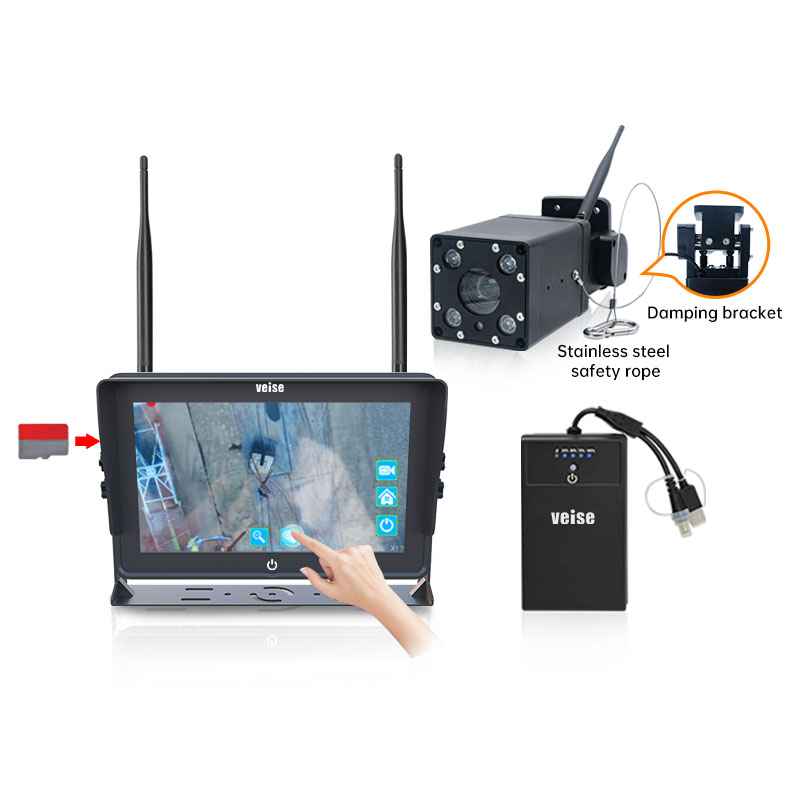

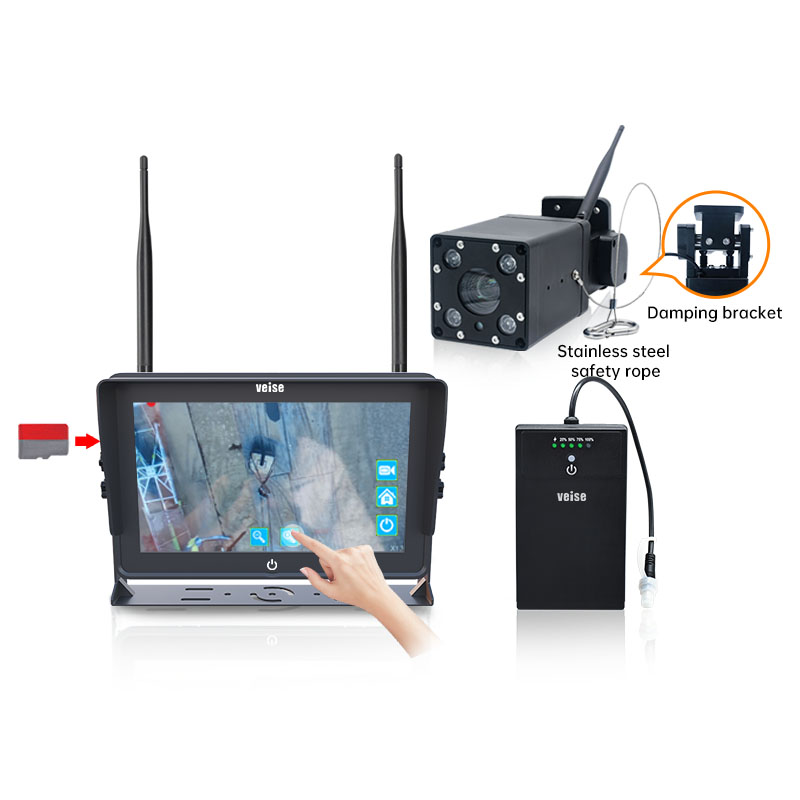

10.1-inch 20x zoom wireless blind spot detection system, fully laminated touch screen can control camera zoom
Model :
MWHD-1034HTP672H1-AF
Summarize :
This system product stands out with features such as a 10.1-inch fully laminated touch display with high-definition 1024x600 resolution, aluminum alloy casing, sensitive touch screen operation, maximum 512G TF card storage, wide voltage adaptation, built-in power reverse protection, constant voltage and current backlight protection, multi-view display, and image adjustment functions. It also has anti-vibration design, complying with the GB/T 2423.56-2018 standard. The matched 1080P digital wireless camera supports 20x optical zoom and digital image stabilization, with a visible range from 5 meters to 200 meters, built-in LED infrared lights support 50 meters HD night vision, uses automotive-grade DSP, million-pixel high definition, IP69K waterproof rating, and comes with a mechanical vertical bracket and anti-drop rope function.
The wireless monitor supports image zooming in and out through buttons, foot pedals, or touch controls on the wireless camera.
Simple operation enables visual tasks, effectively improving work efficiency.
Enhances job safety by reducing operational risks.
Outstanding Performance of Wireless Zoom Camera:
Equipped with 20x optical zoom capability to meet observation needs at various distances.
Features four built-in infrared LED lights to enhance imaging effects in low-light environments.
Comes with an anti-shake gravity damping mount to effectively prevent image shaking caused by wind or high-altitude operations.
Strong stability ensures clear image output in various environments.
These features make the wireless zoom video system play a significant role in a variety of job scenarios, especially in situations requiring remote observation and precise operation.

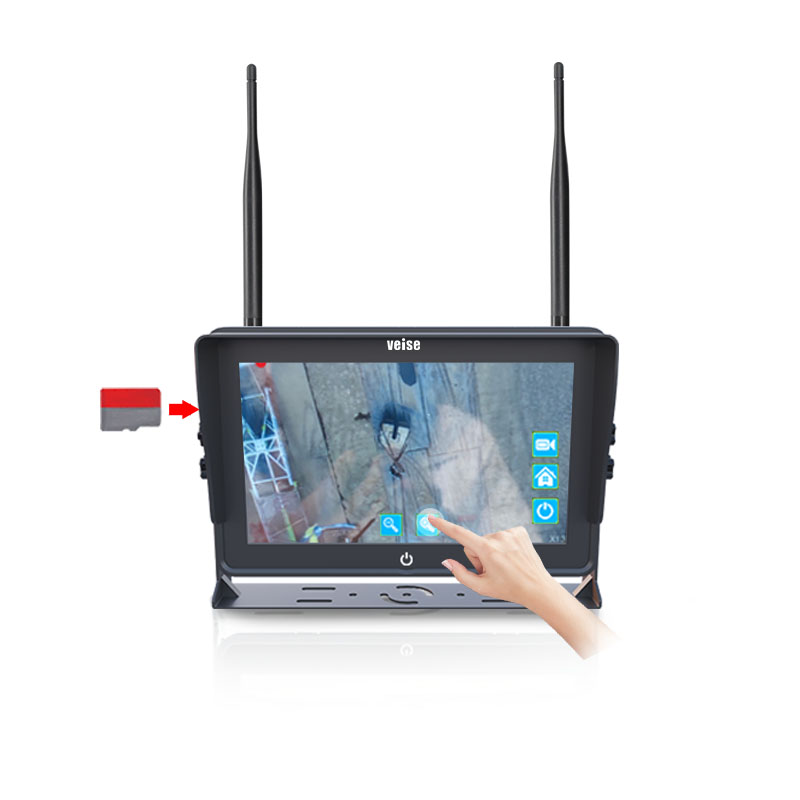

10.1-inch Full Laminate Touch Screen
Screen: Equipped with a 10.1-inch 1024x600 high-resolution LCD screen for clear display.
Housing: Made of aluminum alloy material, with a stable structure and good heat dissipation.
Operation Method: Supports touch screen functionality for sensitive and quick operation.
Storage Function: External TF card for video recording storage, supporting up to 512G, with automatic overwrite of video files.
Voltage Adaptation: Wide range voltage input DC11V-32V, suitable for various vehicles and mechanical equipment.
Safety Design: Built-in power reverse polarity protection circuit to prevent damage from misoperation.
Backlight Design: Built-in constant voltage and current circuit protection to extend service life.
Multi-view Display: Supports single, double, triple, and quadruple screen displays.
Full Laminate Screen Technology: The protective glass panel and display screen of the monitor use a full lamination process structure with no space, eliminating mirror reflection and ensuring a clear and transparent image screen.
Image Adjustment: Individual channel images can be independently set for horizontal mirroring, supporting upside-down installation and 180° image rotation.
Vibration Resistance Design: Compact design, meeting the vibration resistance level of GB∕T 2423.56-2018 standard.
1080P Digital Wireless 20x Zoom Camera
Zoom Function: Optical 20x zoom with digital image stabilization.
Viewing Range: Viewable distance from 5 to 200 meters, with 4 built-in LED infrared lights. The infrared light power automatically adjusts according to the zoom level, supporting 50 meters HD night vision.
Image Quality: Car-grade DSP, million high-definition pixels, IP69K waterproof rating, mechanically vertical bracket design, with anti-drop rope function.

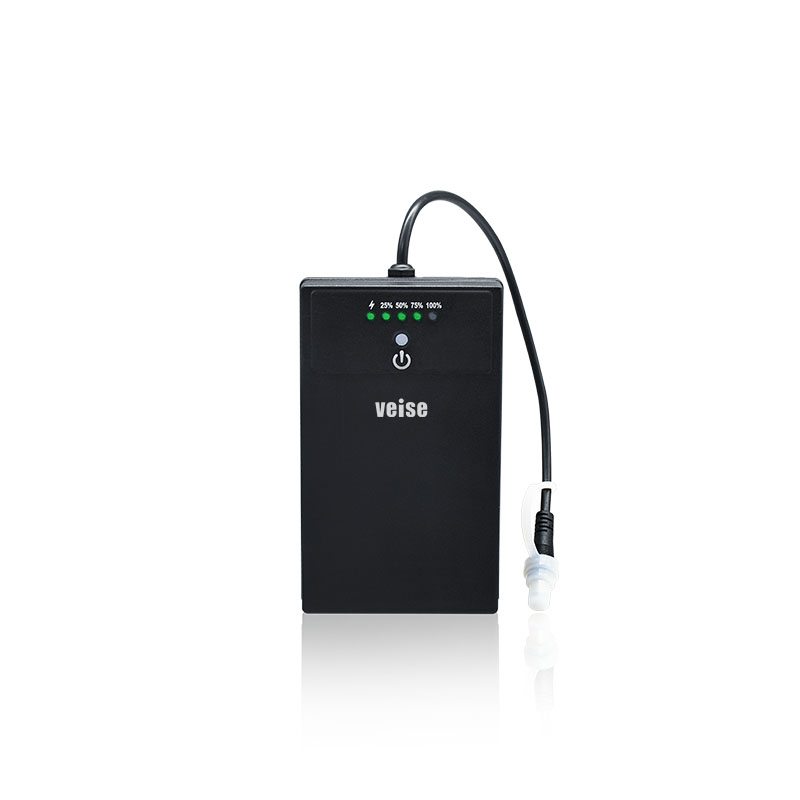

Magnetic All-Aluminum Rechargeable Waterproof Portable Power Bank
Design and Waterproofing: Magnetic adsorption design, IP67 waterproof rating, capable of powering the wireless zoom camera for up to 10 hours of use.
Product Parameters
Model
MWHD-1034HTP-AF
Screen
10.1-inch High-Definition Touch Full Laminate Monitor
Wireless Reception
Built-in 2.4G wireless receiver
Picture Mode
Single, double, triple, and quadruple screen display
Operating Frequency
2400〜2483.5MHZ
Receiver Sensitivity
≤-86 dB
Reception Range
Open space ≤200 meters
Display Screen
10.1-inch IPS full laminate screen
Resolution
1024×(RGB)×600
Viewing Angles (Left/Right)
Left/Right: 85/85, Up/Down: 85/85
Contrast Ratio
800:1
Brightness (cd/㎡)
600
Response Time (milliseconds)
25
Standard
PAL/NTSC (automatic)
Video Recording Function
Real-time recording (2GB per channel per hour)
Video File Format
AVI
Video Recording Capacity
Supports 16-512GB TF cards (standard 64G)
Load Dump
DC24+174V/350ms
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Power Supply
DC11-32V
Dimensions (LxWxH)
265X168X37(mm) (without stand)
Model
1080P Digital Wireless 20x Zoom Camera (CWHD-672H-20X)
Image Sensor
1/2.8 Color
Wireless Transmission
Built-in 2.4G digital wireless transmitter
Transmission Power
18dBm
Transmission Range
Open space ≤200 meters
Resolution
1080P
Effective Pixels
1920(H) x 1080(V)
Optical Zoom
20x (Touch screen control zoom)
Focal Length
5.35～96.3mm
Aperture
F1.6～F3.5
Horizontal Angle of View
64.1～3.6 degrees (Wide-angle - Telephoto)
Viewing Distance
5-200 meters
Zoom Speed
Approximately 3 seconds (Optical, Wide-angle - Telephoto)
Focus Mode
Auto Focus
Day/Night Mode
IR-CUT automatic switching (Color in daytime, Black and white at night)
Infrared Distance
50 meters (Built-in 4 high-power infrared lights)
Housing Material
Aluminum alloy, with anti-drop wire rope clip design
Mounting Bracket
Vertical gravity stainless steel bracket
Waterproof Rating
IP69K
Operating Voltage
DC12-24V
Operating Temperature
-20°C to +60°C
Storage Temperature
-30°C to +70°C
Vibration Resistance
5G (Compliant with GB-T2423056-2006 standard)
Dimensions
220(W) x 90(H) x 90(D) mm
Model
Magnetic Rechargeable Portable Power Supply (MP-03B10W1)
Battery Type
Lithium Polymer Battery
Product Capacity
30000mAh (3.7V) 111Wh
USB Input (Supports Fast Charging)
Universal USB port with protocol fast charging, 12V/1.5A (Full charge takes approximately 10.5 hours)
DC Output
DC12V/0.8A (DC5.5/2.1 male connector)
Charging Cycle Temperature
0°C to +40°C
Charge/Discharge Cycles
>800 times
Discharge Operating Temperature
-10°C to +50°C
Anti-Drop Design
Anti-drop wire rope clip design
Mounting Method
Magnetic base mounting (Built-in 11 strong magnets, front horizontal pull force >20kg, side pull force >8kg)
Waterproof Rating
IP67
Shock Resistance
5G
Dimensions
148(W) x 88(H) x 45.5(D) mm

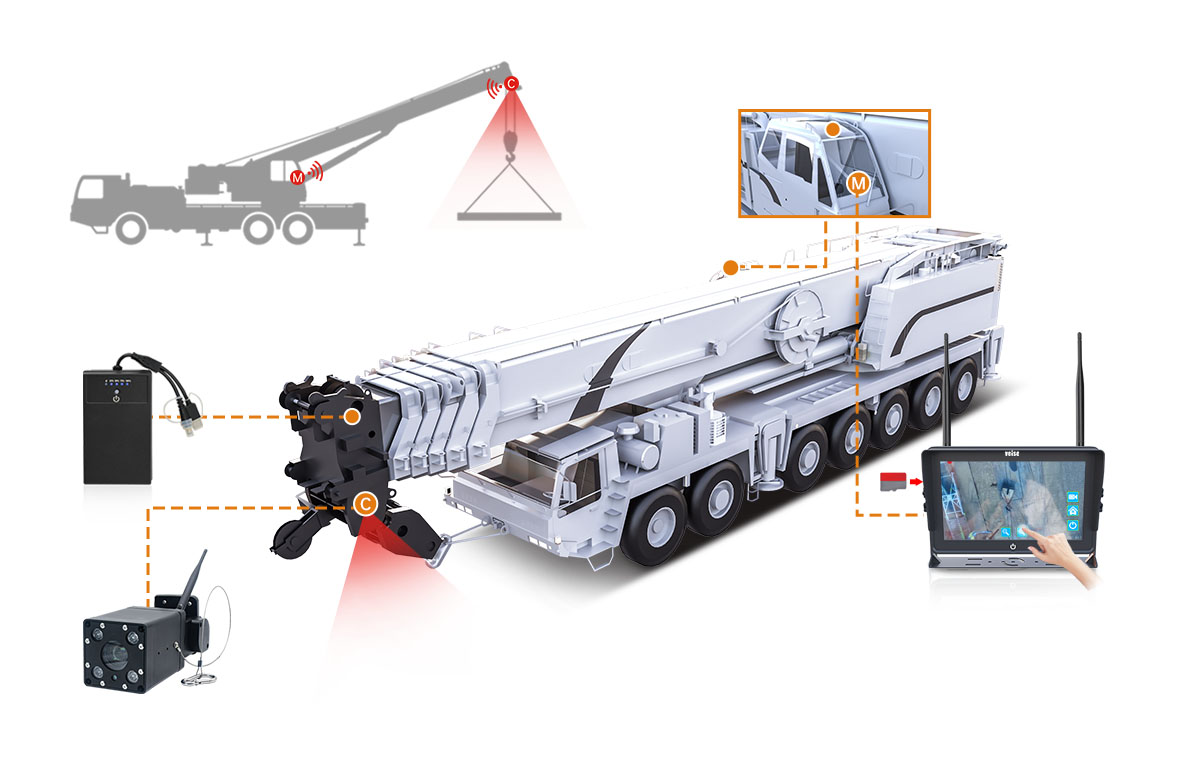

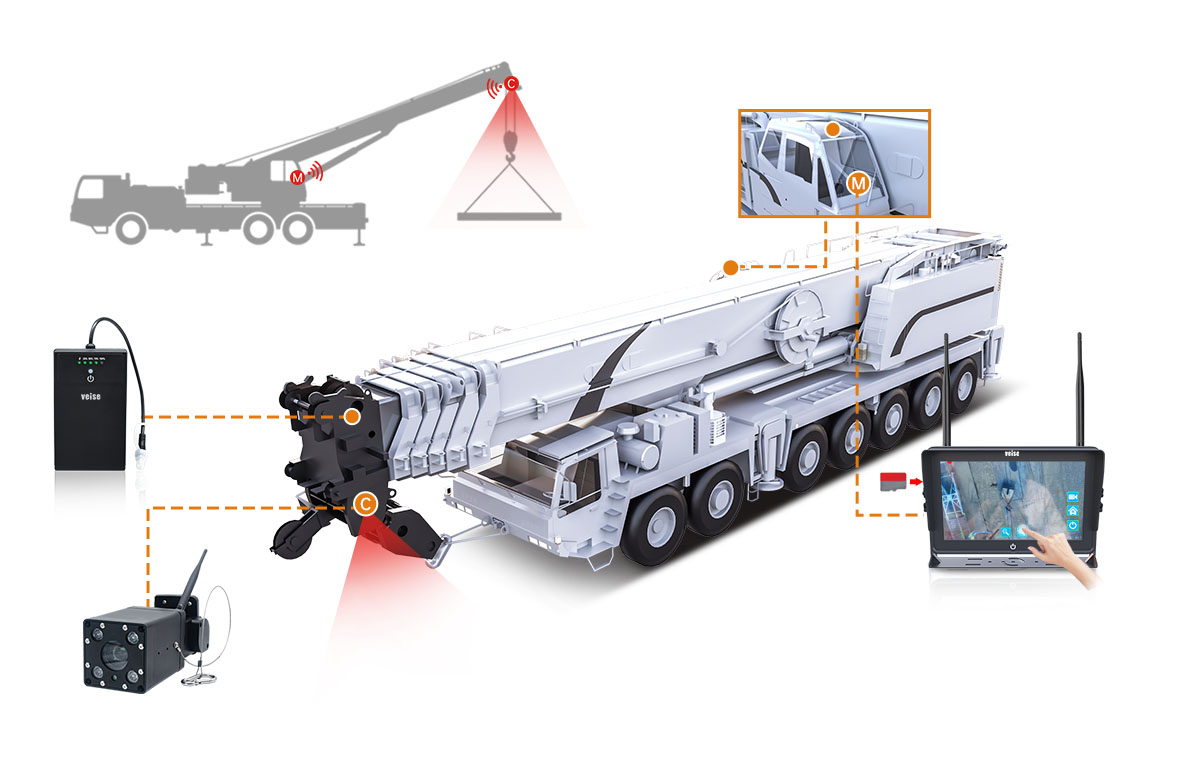

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
