Product Features

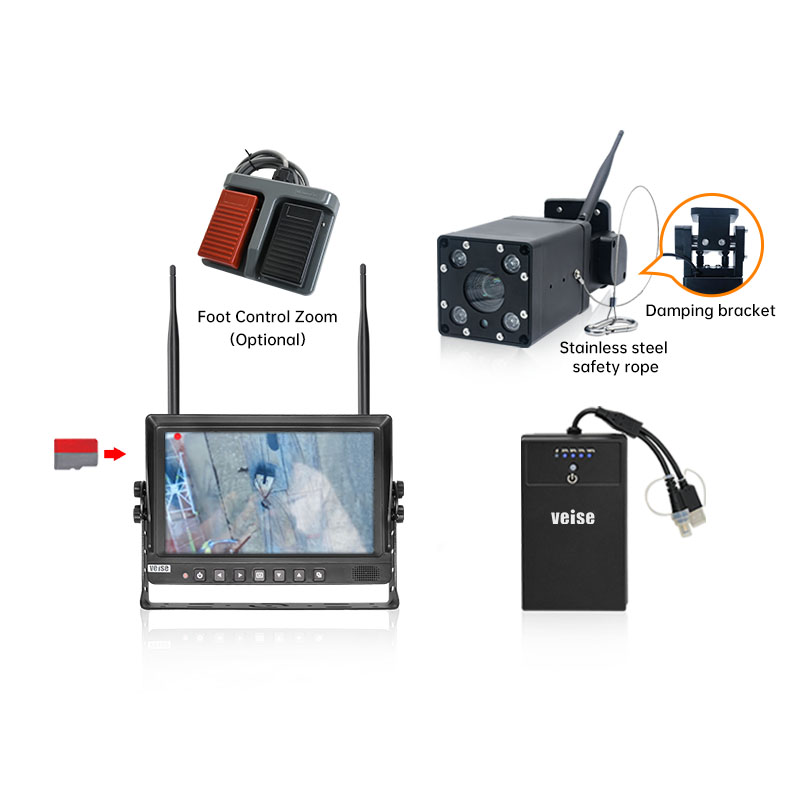

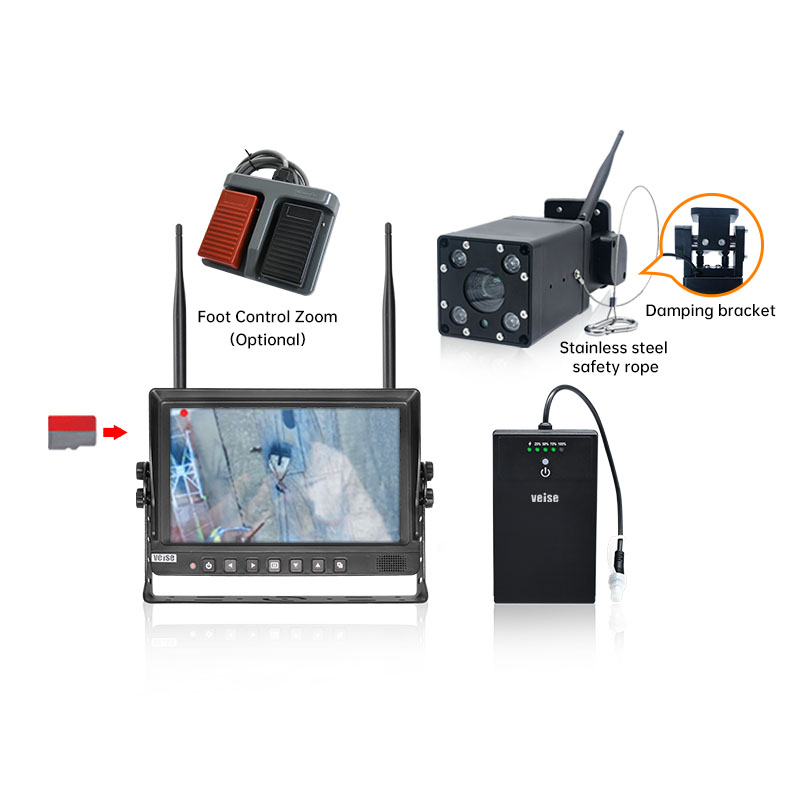

Wireless Zoom Video System Features:
Wireless Control for Easy Operation:
The wireless monitor supports image zooming in and out through buttons, foot pedals, or touch controls on the wireless camera.
Simple operation enables visual tasks, effectively improving work efficiency.
Enhances job safety by reducing operational risks.
Outstanding Performance of Wireless Zoom Camera:
Equipped with 20x optical zoom capability to meet observation needs at various distances.
Features four built-in infrared LED lights to enhance imaging effects in low-light environments.
Comes with an anti-shake gravity damping mount to effectively prevent image shaking caused by wind or high-altitude operations.
Strong stability ensures clear image output in various environments.
These features make the wireless zoom video system play a significant role in a variety of job scenarios, especially in situations requiring remote observation and precise operation.

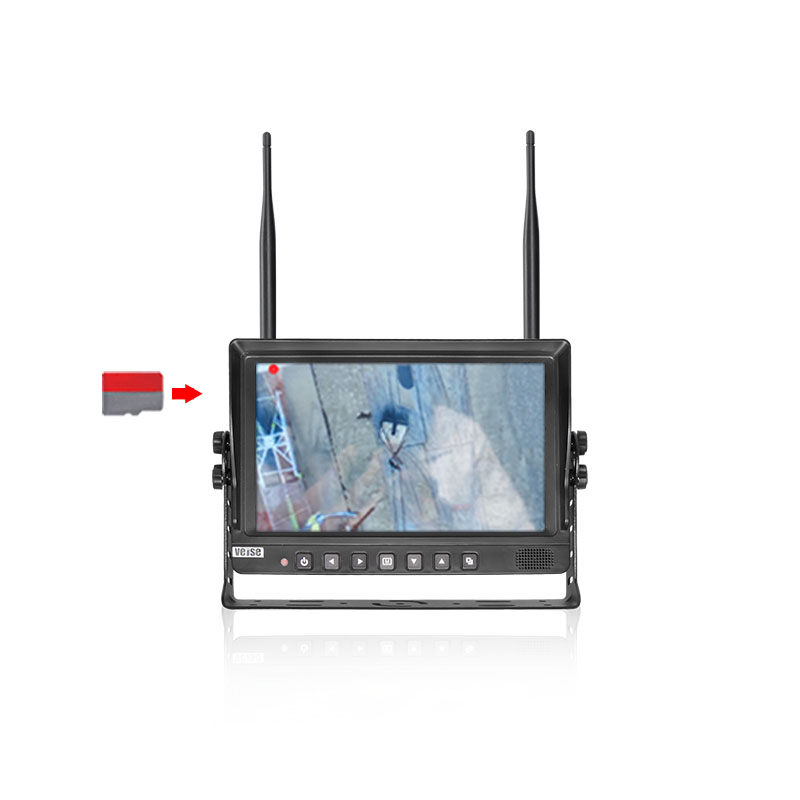

9-inch DVR Wireless HD Monitor
The 9-inch digital screen is equipped with a built-in 2.4GHz wireless receiver, featuring a high resolution of 1024x600 and a high brightness of 600cd/m².
Multi-frequency hopping for code pairing to prevent frequency interference, with a transmission distance of up to 200 meters in open areas.
High resolution of 1024RGBx600.
Built-in DVR and supports 512G SD card storage.
Vehicle-grade industrial level digital video processor suitable for temperatures ranging from -40°C to 85°C.
Supports single, dual, triple, and quad multi-mode display.
OSD menu allows for individual settings for each display screen, including mirror and normal image, delay time, and dual-trigger priority application functions.
Uniquely designed appearance with a patent, the casing is made of ABS+PC materials, which are resistant to high temperatures.
High brightness of 600cd/m² ensures clear images.
Designed to protect against vehicle transient pulse damage with a surge voltage of DC24V+174V (350ms).
Wide range working voltage of DC11~32V.
Built-in protection against reverse polarity of external power supply, and LED thermal response constant current and constant voltage protection for a longer lifespan circuit design.
1080P Digital Wireless 20x Zoom Camera
Zoom Function: Optical 20x zoom with digital image stabilization.
Viewing Range: Viewable distance from 5 to 200 meters, with 4 built-in LED infrared lights. The infrared light power automatically adjusts according to the zoom level, supporting 50 meters HD night vision.
Image Quality: Car-grade DSP, million high-definition pixels, IP69K waterproof rating, mechanically vertical bracket design, with anti-drop rope function.
Magnetic All-Aluminum Rechargeable Waterproof Portable Power Bank
Battery Capacity: 8000mAh fast-charging battery, supporting fast-charging protocols.
Design and Waterproofing: Magnetic adsorption design, IP67 waterproof rating, capable of powering the wireless zoom camera for up to 10 hours of use.
Product Parameters
| Model | MWHD-914H-AF |
| Color Display | 9-inch IPS screen |
| Wireless Reception | Built-in 2.4G wireless receiver |
| Operating Frequency | 2400〜2483.5MHZ |
| Receiver Sensitivity | ≤-86 dB |
| Reception Distance | Open space ≤200 meters |
| Multi-frequency Auto Hopping Channel Code Selection | 80 |
| Resolution | 1024RGB(H) X 600(V)dot |
| Display Mode | Single screen, dual screen, triple screen, quad screen |
| Storage Capacity | External SD card (supports up to 512G) |
| Color System | PAL/NTSC (AUTO) |
| Brightness (cd/m2) | 600 |
| Contrast Ratio | 800:1 |
| Surge and Surge Load Protection | ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) |
| Connector Socket | 18-pin S-Video connector |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC11-32V |
| Vibration Resistance | GB∕T 2423.56-2018 standard (random 5G vibration) |
| Dimensions | LxWxT(244 X 179 X 81)mm |
| Weight | 1140g |
| Model | 1080P Digital Wireless 20x Zoom Camera (CWHD-672H-20X) |
| Image Sensor | 1/2.8 Color |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Range | Open space ≤200 meters |
| Resolution | 1080P |
| Effective Pixels | 1920(H) x 1080(V) |
| Optical Zoom | 20x (Touch screen control zoom) |
| Focal Length | 5.35～96.3mm |
| Aperture | F1.6～F3.5 |
| Horizontal Angle of View | 64.1～3.6 degrees (Wide-angle - Telephoto) |
| Viewing Distance | 5-200 meters |
| Zoom Speed | Approximately 3 seconds (Optical, Wide-angle - Telephoto) |
| Focus Mode | Auto Focus |
| Day/Night Mode | IR-CUT automatic switching (Color in daytime, Black and white at night) |
| Infrared Distance | 50 meters (Built-in 4 high-power infrared lights) |
| Housing Material | Aluminum alloy, with anti-drop wire rope clip design |
| Mounting Bracket | Vertical gravity stainless steel bracket |
| Waterproof Rating | IP69K |
| Operating Voltage | DC12-24V |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Vibration Resistance | 5G (Compliant with GB-T2423056-2006 standard) |
| Dimensions | 220(W) x 90(H) x 90(D) mm |
| Model | Magnetic Rechargeable Portable Power Supply (MP-03B10W1) |
| Battery Type | Lithium Polymer Battery |
| Product Capacity | 30000mAh (3.7V) 111Wh |
| USB Input (Supports Fast Charging) | Universal USB port with protocol fast charging, 12V/1.5A (Full charge takes approximately 10.5 hours) |
| DC Output | DC12V/0.8A (DC5.5/2.1 male connector) |
| Charging Cycle Temperature | 0°C to +40°C |
| Charge/Discharge Cycles | >800 times |
| Discharge Operating Temperature | -10°C to +50°C |
| Anti-Drop Design | Anti-drop wire rope clip design |
| Mounting Method | Magnetic base mounting (Built-in 11 strong magnets, front horizontal pull force >20kg, side pull force >8kg) |
| Waterproof Rating | IP67 |
| Shock Resistance | 5G |
| Dimensions | 148(W) x 88(H) x 45.5(D) mm |

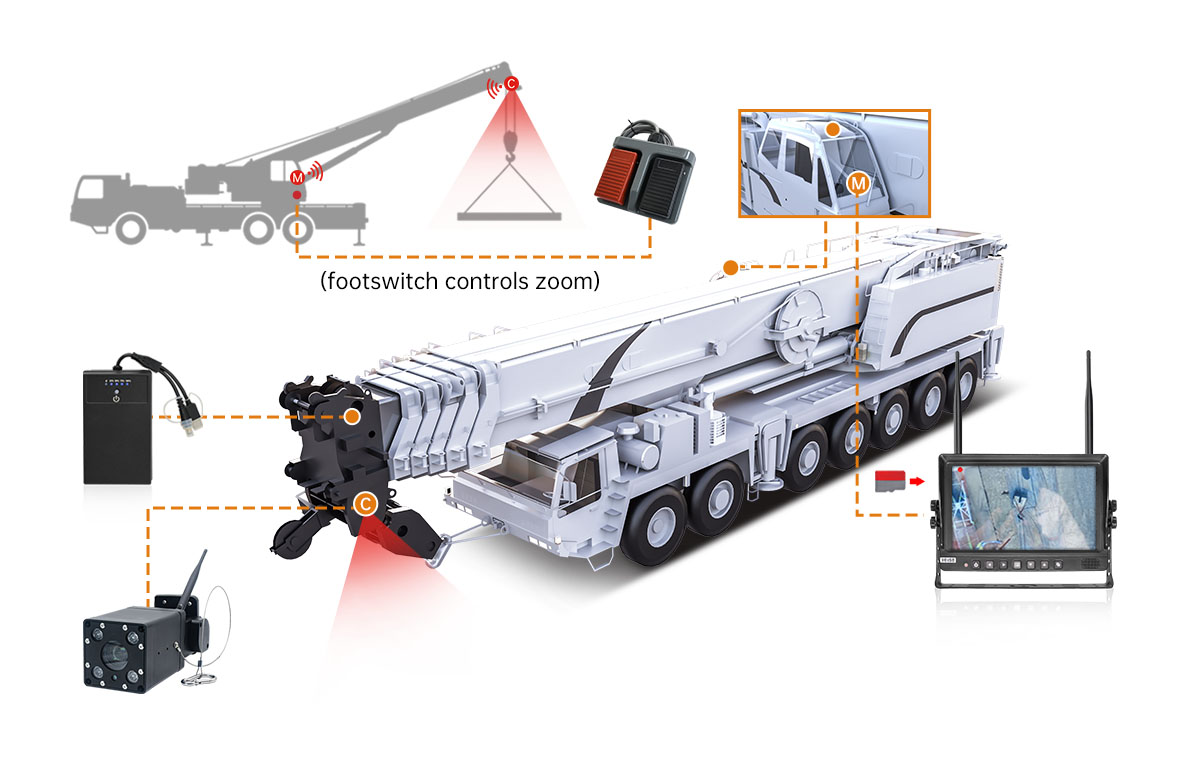

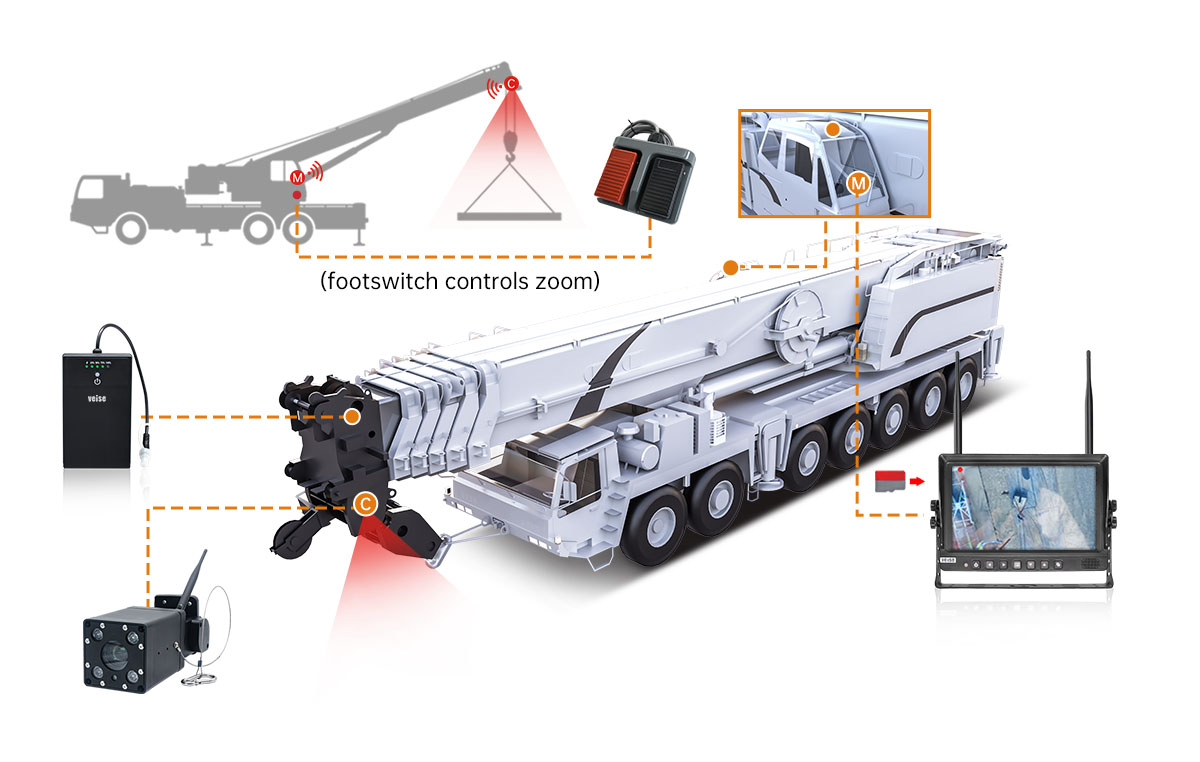

Product Applications
