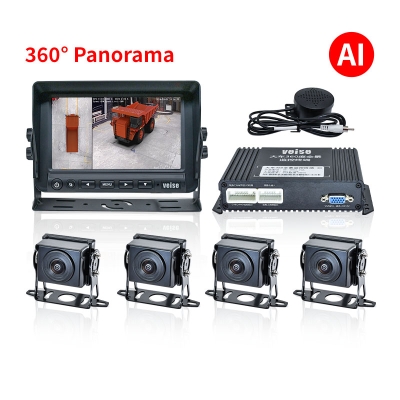

AVM System and 360 Panorama Camera System

  • Model : HDS-779H8AI802Z4-AHD
  • Summarize : Engineering machinery equipment vehicles, agricultural machinery equipment vehicles, municipal environmental sanitation sweepers, etc. have the characteristics of wide-body width and long shaft length of the vehicle body, and a high driving position. There is a large driving visual safety blind zone around the vehicle. A single camera and multi-picture rear-view system cannot meet the requirements of multiple monitoring areas. The 360 panoramic pedestrian and vehicle detection and early warning system is composed of four wide-angle starlight full-color cameras installed in the four directions of the vehicle, which synthesizes the panoramic overhead view around the vehicle through 360° AI visual algorithm. When there are pedestrians and other vehicles around the vehicle, the system's onboard display screen picture and sound and light alarm are linked for early warning, providing drivers with intuitive safety prompts, and making the vehicle's driving safer and more efficient.

AVM System and 360 Panorama Camera System

Dangers of Large Vehicle Blind Spots

Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.

Pedestrian & Vehicle Detection

It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time.  (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)


Blind Spot Audible And Visual Alarm Warning driver

Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. AI pedestrian vehicle detecting and warning camera to capture personnel in the monitoring area in real time, It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver.

Wide Angle View

The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.

Product Features

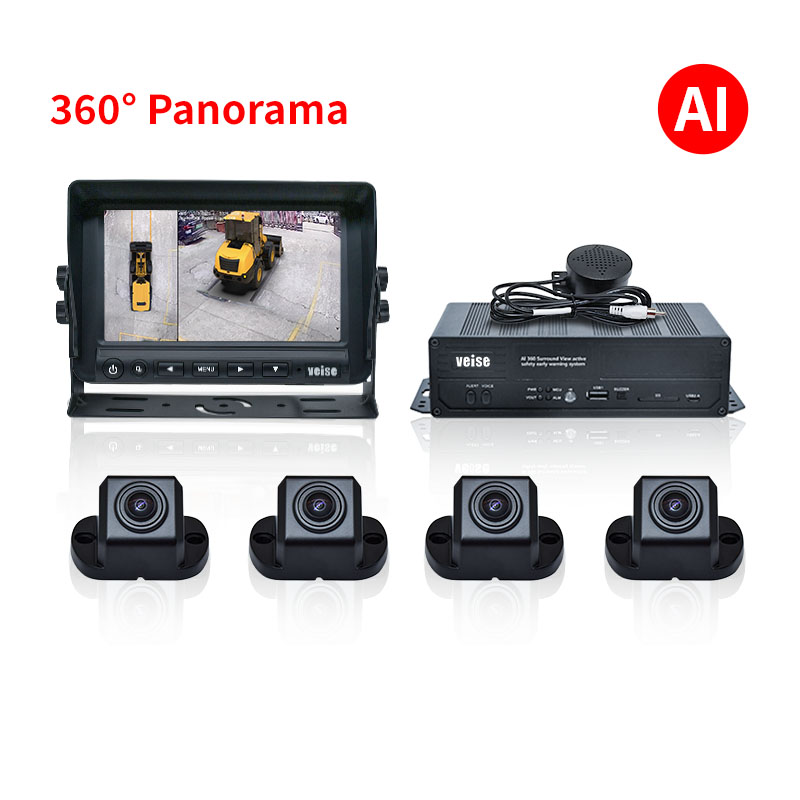

AI 360 AVM System

Around View Monitor System (AVM)

Shoot images by multiple (generally four) super-wide cameras. Carry out distortion correction and stitching on the taken images by special algorithms, forming a system that shows the panoramic images around the object. Intellectual (automatic, manual) fast stitching. The steering signal automatically switches between 3D/2D images of the vehicle. Intellectual voice control 12 kinds of image monitor modes. Detection and warning of safe distance for pedestrians and vehicles around the vehicle, achieving 360 ° blind spot free collision prevention.

When the vehicle speed is below 25 kilometers per hour, the system will automatically switch the warning screen, turn lane assist warning screen, and link the external sound and light alarm.

Support 4-channel AHD panoramic camera input, another 2-channel surveillance camera can be extended, support 16-channel radar probe input, support for flameout alarm function, support for CAN bus communication protocols.

Support real-time recording, loop recording, video playback (SD card + MSATA storage mode).

7-inch HD IPS monitor

Automotive-grade DSP, 1024RGB(H) X 600(V)dot Resolution.

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

210° super-wide, automotive-grade DSP, 2 million HD pixel, IP69K Waterproof Rate, starlight full color, cold-resistant waterproof signal output cable.

Product Parameters

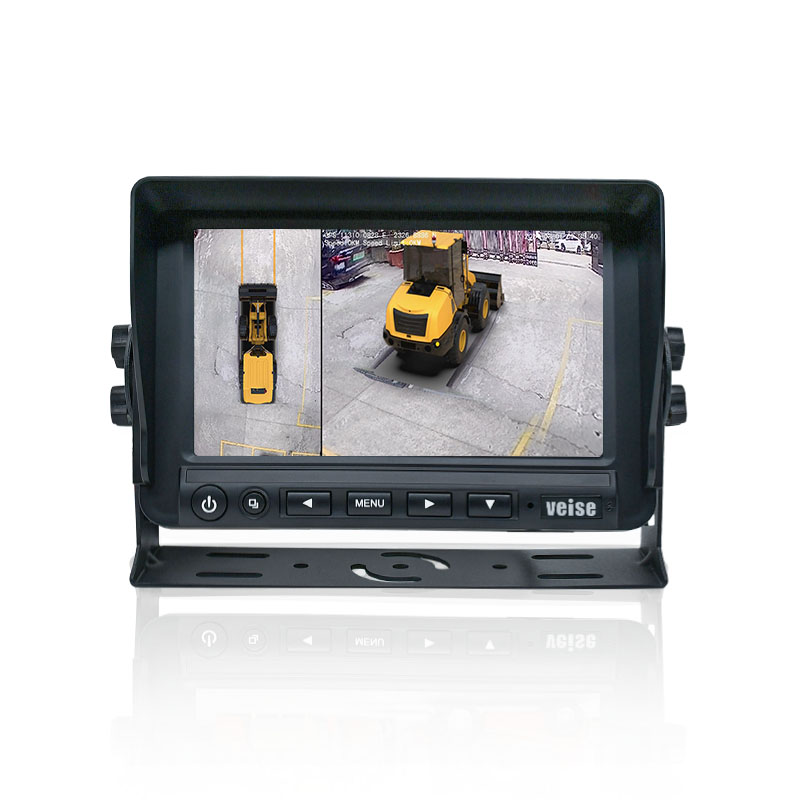

HD MonitorModelMHD-779
Screen7-inch IPS screen
Resolution1024*600
Brightness600cd/㎡
Viewing Angle85/85/85/85(left/right/up/down)
Signal Inputsupport two channel AHD1080/720/CVBS video signals input
Working VoltageDC11-32V/5W
Working Temperature-20℃~+70℃
Storage Temperature-30℃~+80℃
Vibration RatingGB∕T 2423.56-2018 standard (random 5G vibration)
Dimension200*130*82mm(without bracket)

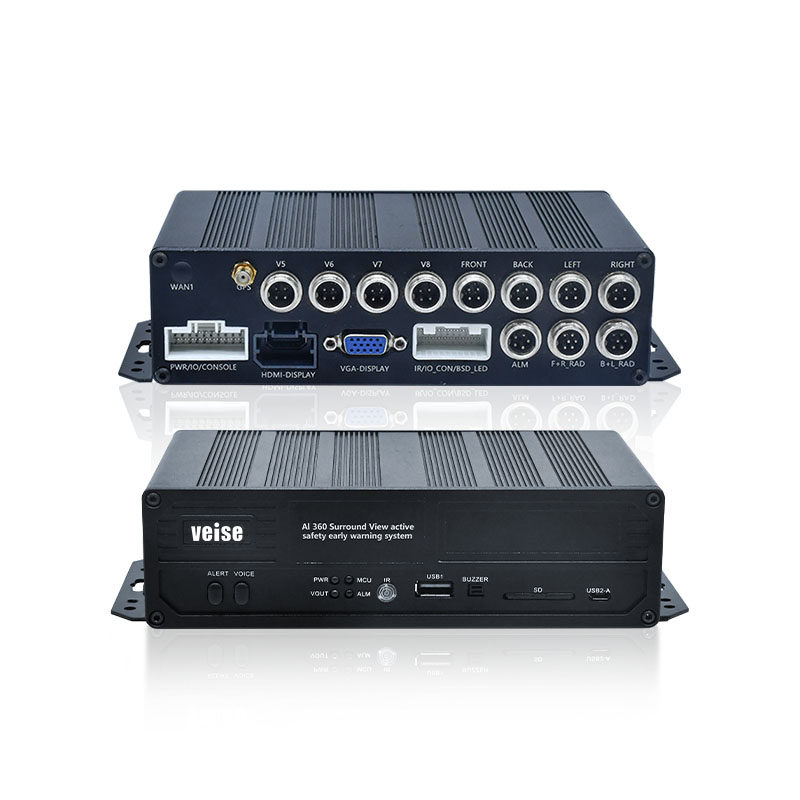

AVM+DVR

Model

DF-3DH8AI-AHD

Power Consumption

10-30W

Video Output

CVBS/HD

Video Input

4-CH AHD panoramic cameras+4-CH AHD cameras

Early Warning Function

Blind Spot Detect  (BSD)

Recording Function

2.5-inch HDD/SSD(128G-2TB)/SD(8-512GB)

Video Format

H265

Recording Resolution

1920*1080P

File Capacity

1.25GB per hour

Working Temperature

-20~70℃

Storage Temperature

-40~80℃

Vibration/shock

GB∕T 2423.56-2018 standard (random 5G vibration)

Dimension

L*W*H=105*178*50(unit: MM)

Weight

0.65KG

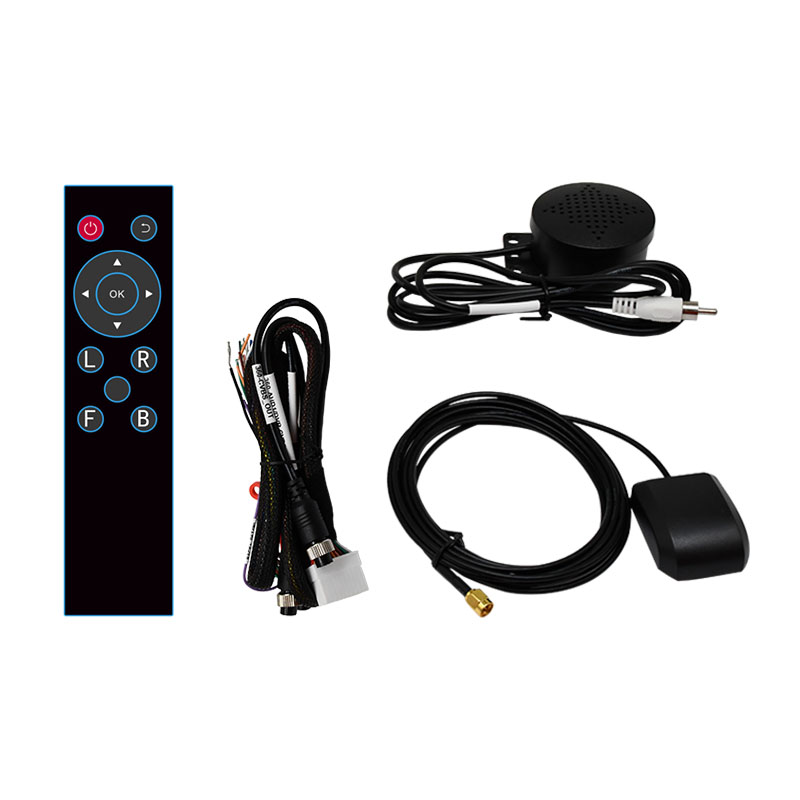

Radar【optional】

Radar Warning

Supporting 16 probes of ultrasonic radar

Detecting Distance

2.5 meters

Power Supply Parameter

DC12-33V/0.2W

Radar Function

Blind Spot Detect (BSD)+Lane Changing Assist (LCA)+parking assist

CAN Correspondence【optional】

Function and Characteristic

High speed CAN bus transceiver, compliant with ISO11898 standard, low-power management, network wake-up function (Screen mode, AI alarm data output)

Sound and Light Warning【optional】

Specification

DC12-36V/3W,prevention rate IP65, 16 level adjustable volume, RS485 correspondence

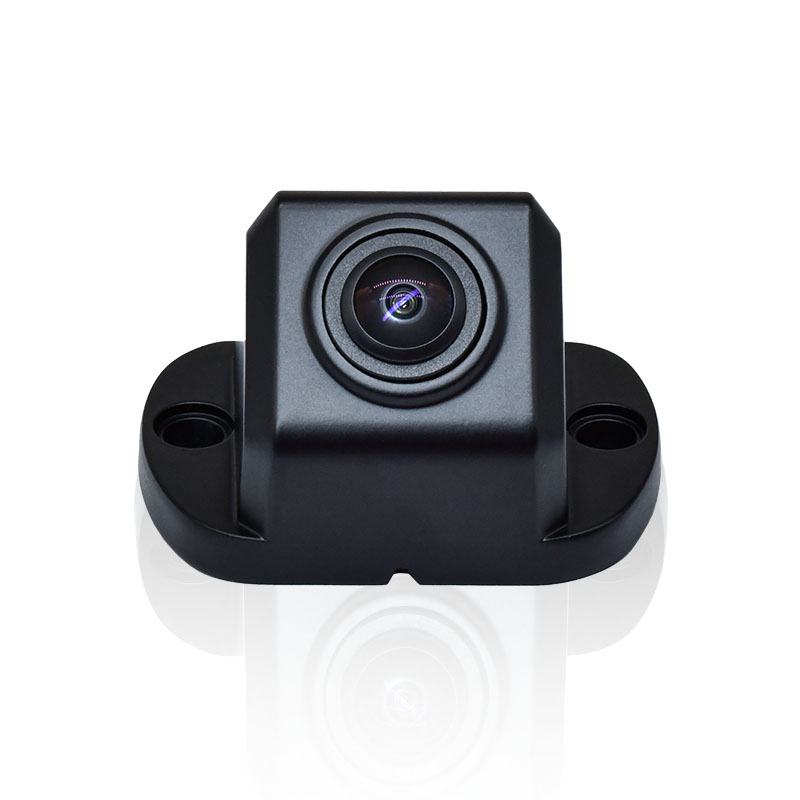

Panoramic CameraModelCHD-802Z

Working Voltage

DC8-16V

Resolution

1080P

Working Temperature

-20℃~+60℃

Video Frame Rate

25 FPS/30 FPS

Waterproof Rate

IP68

Low Illumination

0.01 Lux

Vibration Rating

GB∕T 2423.56-2018 standard (random 5G vibration)

Horizontal Angle

210°

Vertical Angle

126°

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
