10.1-inch reverse camera system, monitor with backlit buttons

Product Features

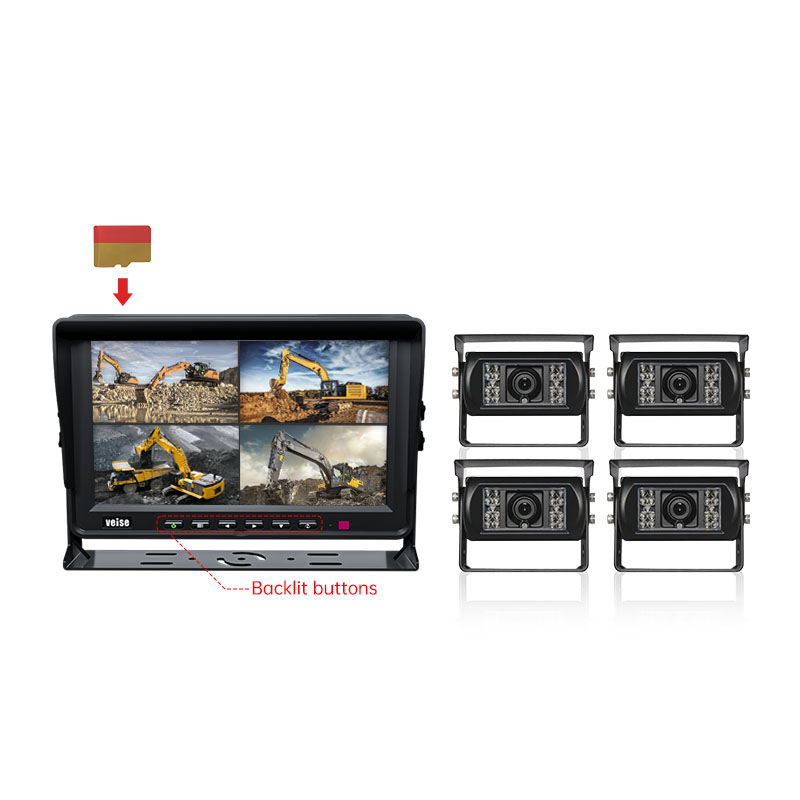

10.1" Backlit Button Monitor

• Display Screen: Equipped with a 10.1" 1024 x 600 high-resolution LCD screen for clear visibility.

• Housing: Made of ABS+PC, providing a stable structure and excellent heat dissipation.

• Operation: Supports backlit button functionality for sensitive and quick operation.

• Storage: External TF card storage for video recording, supporting up to 512GB with automatic file overwrite.

• Voltage Compatibility: Wide voltage input range of DC 11V-32V, suitable for various vehicles and machinery.

• Safety Design: Built-in reverse polarity protection circuit to prevent device damage from incorrect connections.

• Backlight Design: Features constant voltage/current circuit protection to extend service life.

• Multi-View Display: Supports dual, triple, quad, and picture-in-picture display modes.

• Image Adjustment: Each channel can be independently set for horizontal mirroring, upside-down installation, and 180° rotation.

• Reverse Parking Assistance: Supports reverse parking scale line function for individual channels.

• Vibration Resistance: Compact design, meeting the vibration resistance standard GB/T 2423.56-2018.

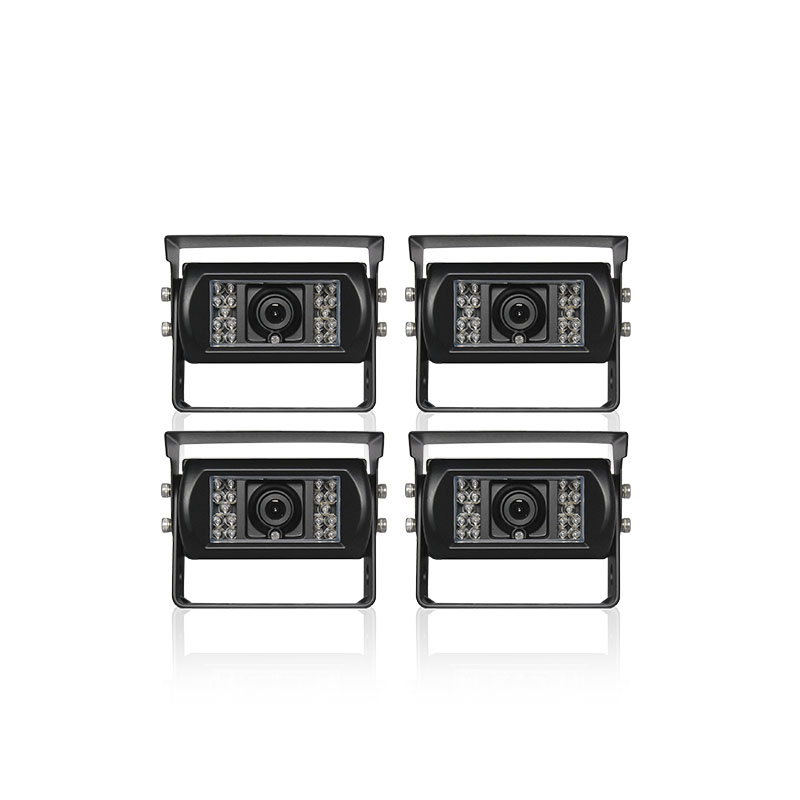

HD Automotive Camera

• Original imported SONY DSP, 2 million high-definition pixels, aluminum alloy housing for heat dissipation, nitrogen filling to prevent fogging, IP69K waterproof rating (patented waterproof testing equipment), cold-resistant and waterproof tail cable, suitable for various extreme environments.

Video and Power Cable

• Material: 4-core phosphor bronze aviation plug with double-shielded cable, offering excellent anti-interference performance.

• Features: Low impedance, minimal signal attenuation, double-injected aviation plug tail cable with superior tensile and anti-swing performance.

Product Parameters

Product Applications
