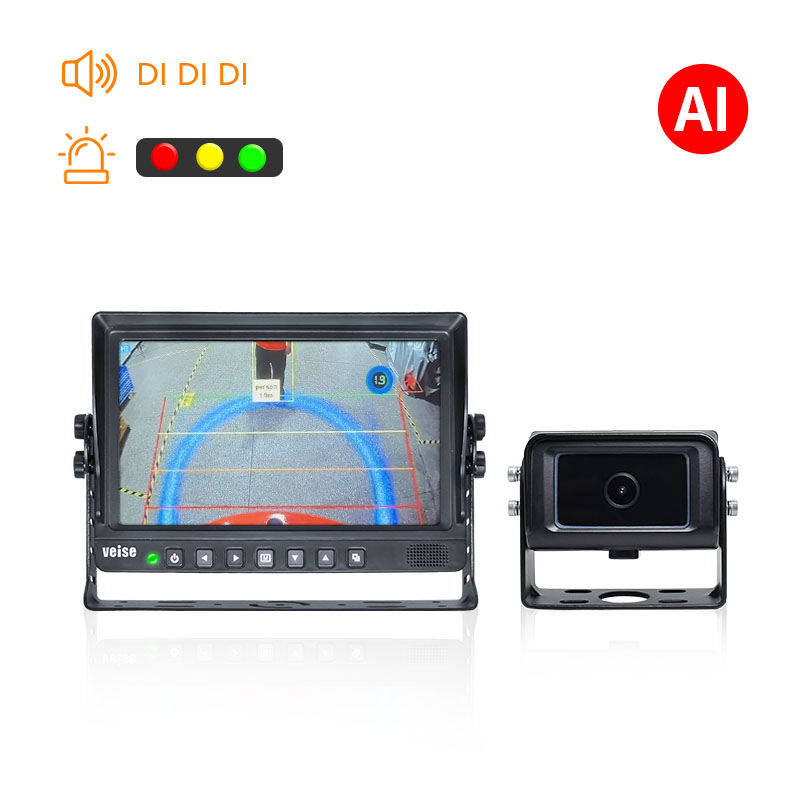

AI Pedestrian & Vehicle Detecting and Warning Camera with DVR and Blind Spot Warning Information System
Dangers of Large Vehicle Blind Spots
Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.
Pedestrian & Vehicle Detection
It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time. (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)
Blind Spot Audible And Visual Alarm Warning Driver
Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. AI pedestrian vehicle detecting and warning camera to capture personnel in the monitoring area in real time, It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver.
Wide Angle View
The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.
Product Features

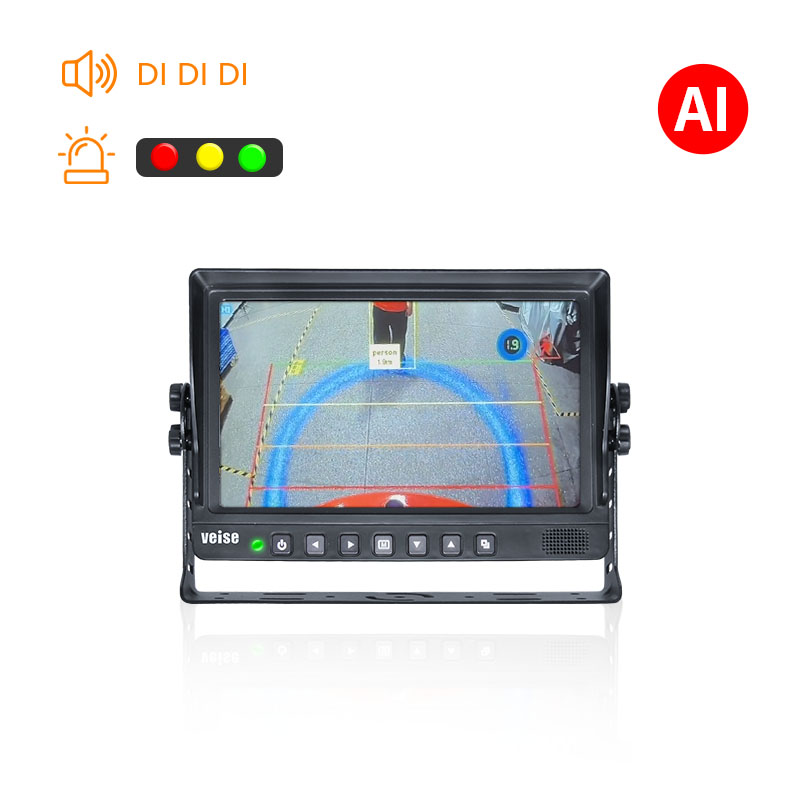

9-Inch HD Monitor
Screen : 9-inch IPS screen with fast response speed, wide viewing angles, true colors, resolution of 1024RGBx600.
AI Warning : AI Camera sends warning signals that trigger monitor built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver for safety alerts.
Video Input: Supports 2 channels of video input.
Setting Functions: OSD menu allows for image mirroring, normal image, delay time, and dual-trigger priority settings.
Appearance Design: Patented independent design with high-temperature resistant ABS+PC housing.
Sunshade Design: Detachable sunshade to prevent sunlight interference.
Bracket Design: Rust-resistant metal material with U-shaped and dual-side fastening for vibration resistance.
Brightness: High brightness of 600cd/㎡ for clear images.
Voltage Protection: Protects against vehicle transient pulses with a load-dump pulse voltage of DC24V+174V (350ms).
Power Design: Energy-efficient independent power supply with a wide operating voltage range of DC11~32V.
Protection Mechanism: Built-in protection against external power polarity reversal and LED thermal response constant current and voltage protection.
HD Monitor (MHD-911J) |
| Color Screen | 9-inch IPS screen |
| Resolution | 1024RGB(H) X 600(V) dot |
| Video Input | 2 channels |
| Screen Mode | Single screen |
| Video Signal Input | CVBS / AHD 720P / 1080P |
| AI Pre-warning signal input | ●Green light - Safe, ●yellow light - Caution, ●Red light - Danger |
| OSD Menu Functions | Mirror/normal image setting, reverse delay setting, trigger priority, multilingual support |
| Color System | PAL/NTSC (AUTO) |
| Brightness | 600 (cd/㎡) |
| Contrast Ratio | 800:1 |
| Surge and Load Dump Protection | ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC11-32V |
| Vibration Level | GB∕T 2423.56-2018 standard (random 5G vibration) |
| Dimensions (L x W x T) | 210 x 143 x 84mm |
| Weight | 800g |
HD AI Pedestrian Detection Camera
HD AI Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle, on the side, and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety!
Effective Pixels: 1920(H) x 1080(V)
Waterproof Rating: IP69K
| AI Camera (CHD-122MAI) |
| Image Sensor | 1/2.9 Color CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Horizontal Resolution | 1080P |
| Field of View | 100° |
| AI Alarm I/O Output | 1-4 levels PWM |
| Detection Targets | Pedestrians/non-motorized vehicles |
| Detection Image Ranging | 0-5 meters (customizable) |
| Signal-to-Noise Ratio | ≥48dB (AGC Off) |
| Video Output | AHD 1080P |
| Housing Material | Aluminum alloy |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V ±10% |
| Operating Temperature | -20°C to +60°C (RH95% Max) |
| Storage Temperature | -30°C to +70°C (RH95% Max) |
| Vibration Resistance | GB∕T 2423.56-2018 standard (random 5G vibration) |
| Body Interface | 4-core aviation connector |
| Product Dimensions | 74(W) x 64(H) x 56(D) mm |
Video Power Connecting Cable
Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
