Product Features
The AI on-board driving detection and pre-alert system is an intelligent on-board safety monitoring device specifically designed for industrial vehicles, such as buses, commercial vehicles, engineering vehicles, stackers, forklifts, and other engineering equipment. It can detect the dangerous state of the working area in real time and provide warnings, and enhance the safety of the operation of engineering vehicles. It is an essential safety system in the smart industrial era.
The AI intelligent video analysis host is based on the Al image intelligent recognition technology as the core, and through the artificial intelligence deep learning technology to learn, and summarize the rules of a large amount of video image data from cameras, to achieve the automatic detection and analysis of real-time video images, and make prompts, warnings, and controls.
1. In-depth learning algorithm
Through the convolutional neural network algorithm for video image recognition, the deep residual neural network algorithm, the online learning to enhance the Model, etc., combined with the image dynamic analysis and prediction Model and the multi-redundant self-learning decision mechanism, to achieve intelligent image analysis, target tracking and recognition, and identification and warning of major hazard sources, to meet the recognition rate ≥ 99% and accuracy ≥ 99% in specific scenarios.
2. Intellectual driving
Support the three blind zones of left, right, and rear. When a motor vehicle/non-motor vehicle/pedestrian approaches the area, it prompts a buzzer alarm, and the custom calibration of the warning controls the scope of the alarm area by adjusting the position of the four points of the red quadrilateral. When a motor vehicle, non-motor vehicle, or pedestrian approaches the area, it prompts an alarm.
3. intellectual video storage
The RTOS system's recorded video file is a video codec encoded and decoded by the H.264 protocol, and the file format is TS, and it can be played by any computer player.
4. Linkage Functions
Left-view monitoring: Triggering the left turn to display the left-monitoring image, and when a motor vehicle/non-motor vehicle/pedestrian approaches the area, it prompts a buzzer alarm.
Right-view monitoring: Triggering the right turn to display the right-monitoring image, and when a motor vehicle/non-motor vehicle/pedestrian approaches the area, it prompts a buzzer alarm.
Rear-view monitoring: Triggering reverse to display the rear-view monitoring image, and when a motor vehicle/non-motor vehicle/pedestrian approaches the area, it prompts a buzzer alarm.
The right-view monitoring image is displayed when the double flash is on.
Pedestrian/vehicle detection: When a motor vehicle/non-motor vehicle/pedestrian approaches the area, it prompts a buzzer alarm.
Product Parameters

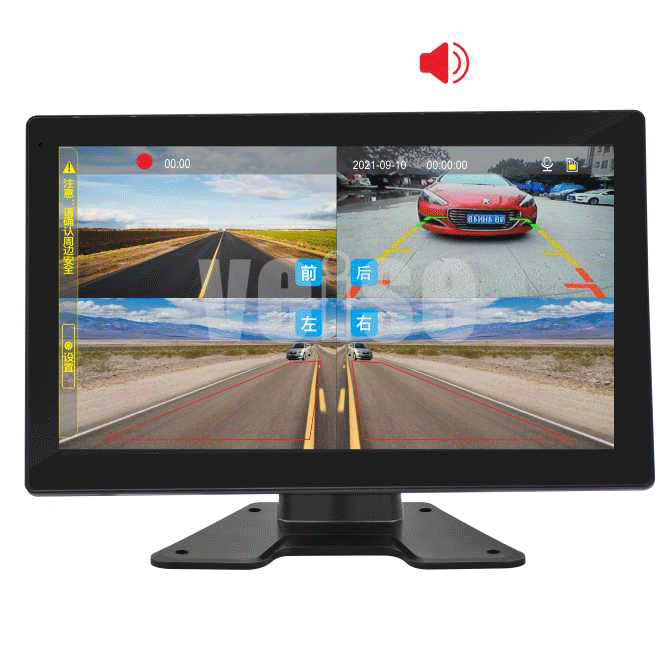

10.1-inch 2.5D full touch AI warning integrated machine (MHD-1024AI) |
Color Monitor Screen | 10.1-inch full touch IPS screen |
Resolution | 1024(H) X 600(V)dot |
Recording Operating System | RTOS |
Recording Video Format | H.264 TS format |
Recording Resolution | 1280x720p |
Recording Audio Input | equipped with a pickup |
Recording Storage | support TF card, maximally support 256G. The maximum recording can reach up to 65 hours (about 1G of memory per hour for one route). |
Video Input | support 4-channel AHD720 Video Signal Input |
Pedestrian and Vehicle Detecting | Support the prompt alarm after the motor vehicles/non-motor vehicles/pedestrians approach the area in the blind zone of the three routes of the left, right, and rear screens. |
Area Warninng Calibration | customizable adjustment of the warning zone |
Alarming Mode | single-view mode/four-view mode/sensitivity with high, medium, and low adjustable |
Color System | PAL/NTSC |
Brightness (cd/m2) | 600 |
Load Dump | ISO16750-2 standard(24V system Us=174V,Ri=4Ω,td=350ms) |
Anti-vibration Grade | GB∕T 2423.56-2018 standard (random 5G vibration) |
Operating Temperature | -20℃ to +70℃ |
Storage Temperature | -30℃ to +80℃ |
Operating Voltage | DC9-36V |

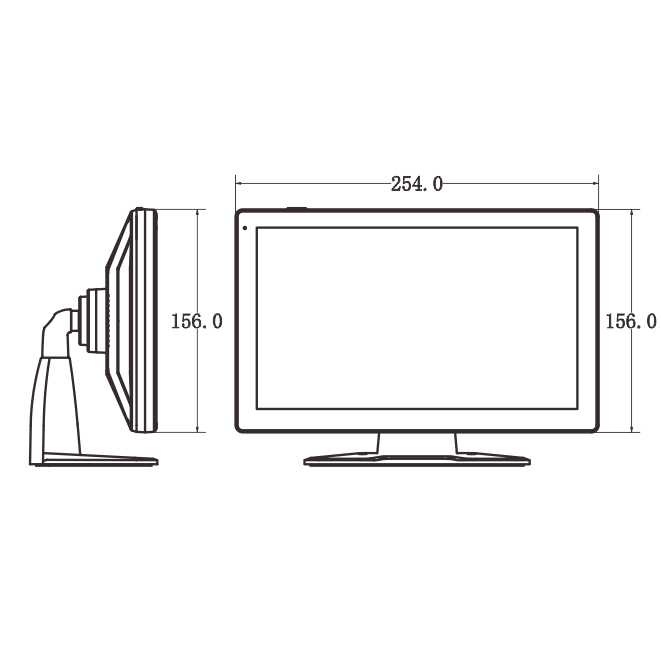

Outer Size | (L x W x T) (254 x 561 x35mm) without bracket |

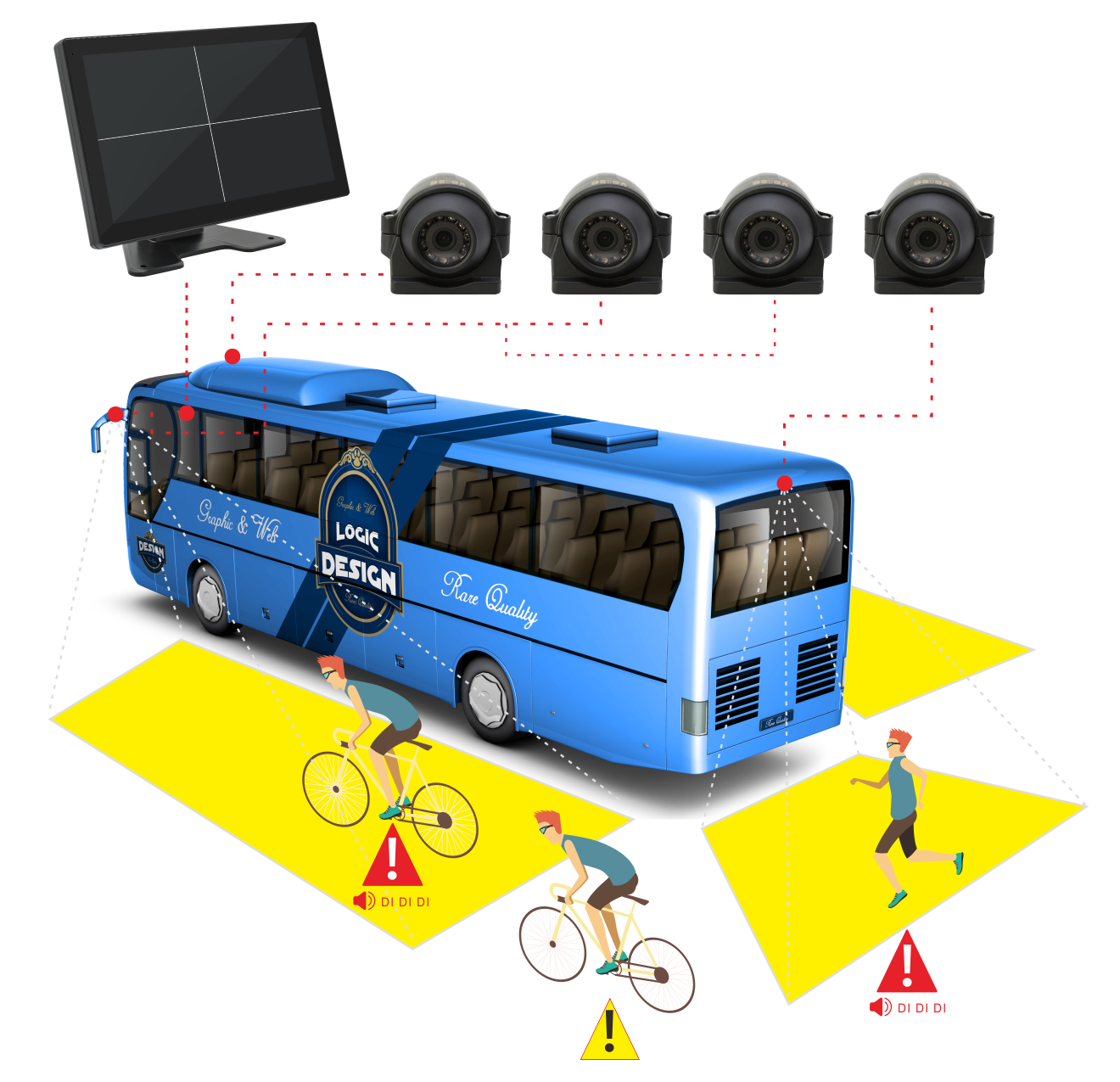

Appplications
![MHD-1024AI AI车载行驶侦测预警显示器产品应用 MHD-1024AI AI车载行驶侦测预警显示器产品应用](../upload/202401/1706520345510099.png)
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
