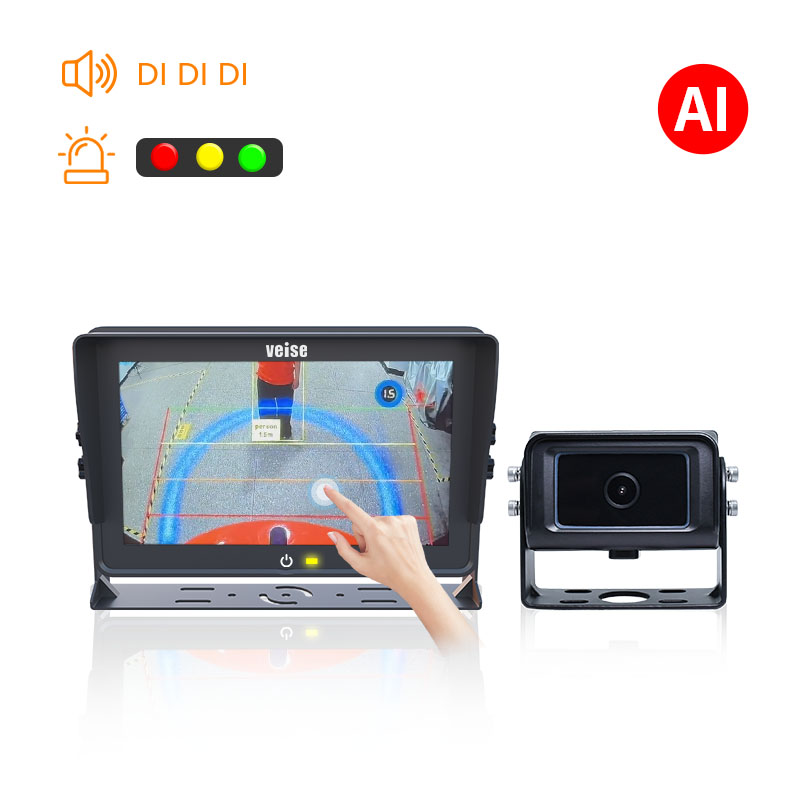

AI Reverse Camera System with DVR and Touch Screen
Model :
HDS-1034MDJ122MAI
Summarize :
Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. This is especially true in situations where no reverse radar warning system is installed. During vehicle operation, this can easily create safety hazards for personnel, leading to economic losses. The AI pedestrian detection warning rearview system not only eliminates the need for the complex wiring and installation of reverse radar,but also allows the AI human shape analysis camera to capture personnel in the monitoring area in real time, unlike ordinary cameras. It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver, thus enhancing vehicle operation efficiency, eliminating safety hazards, and preventing economic losses. The monitor supports real-time recording, playback, and safe distance display functions.
AI Pedestrian & Vehicle Detecting and Warning Camera with DVR and Blind Spot Warning Information System
Dangers of Large Vehicle Blind Spots
Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.
Pedestrian & Vehicle Detection
It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time. (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)
Blind Spot Audible And Visual Alarm Warning Driver
Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. AI pedestrian vehicle detecting and warning camera to capture personnel in the monitoring area in real time, It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver.
Wide Angle View
The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.

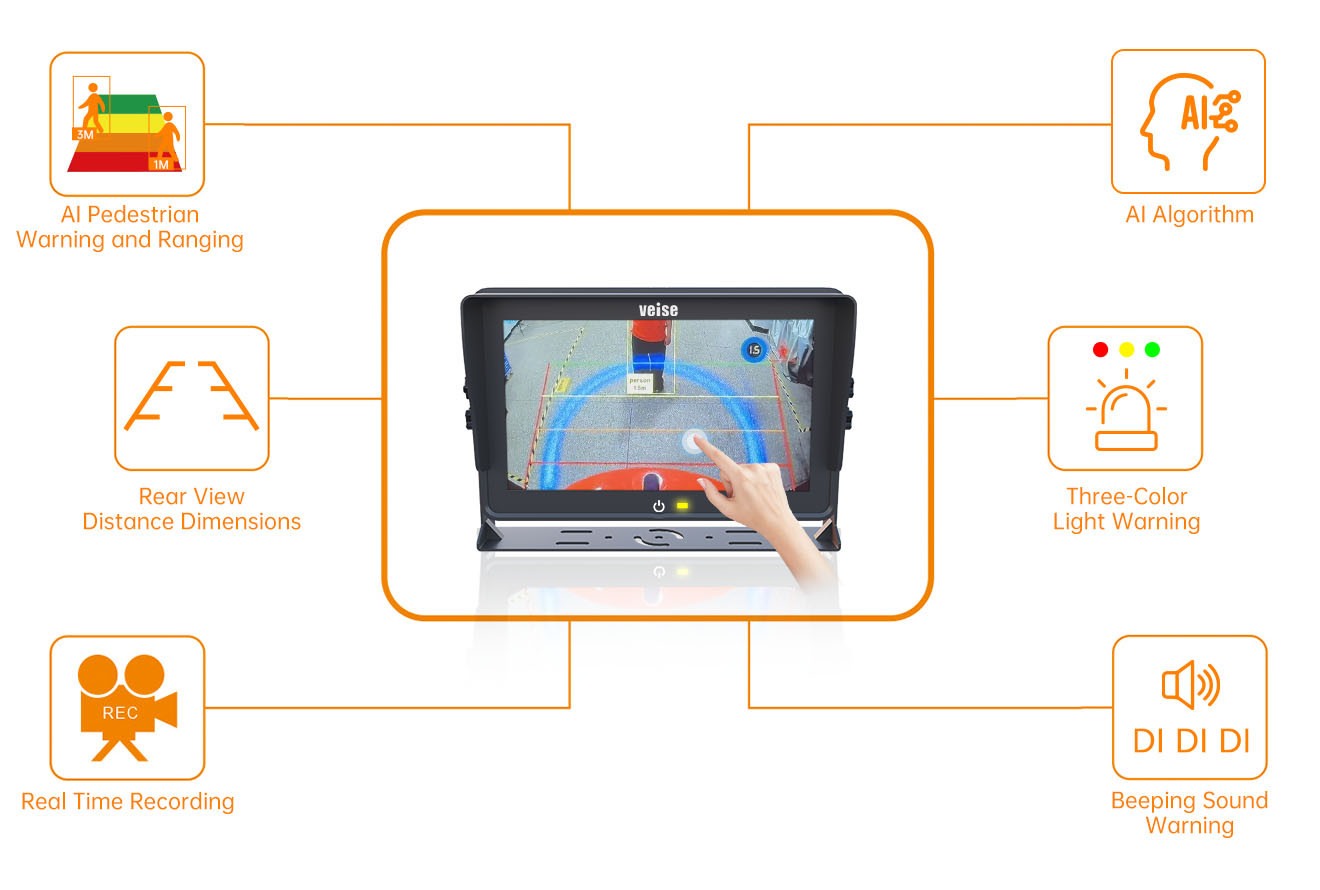

Product Features

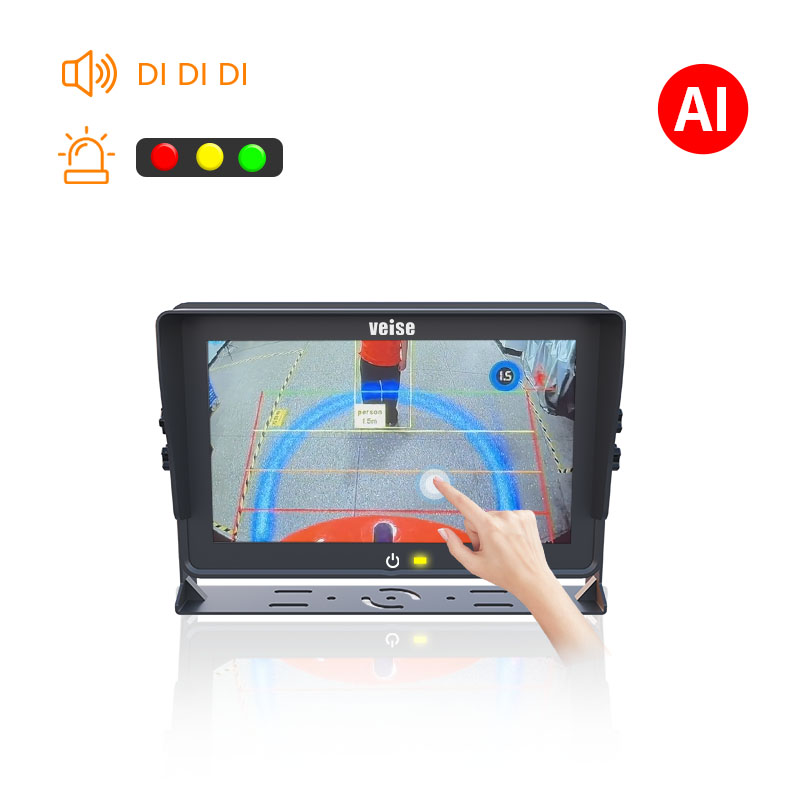

HD Touch Screen Monitor
Screen: 10.1-inch IPS screen with fast response speed, wide viewing angles, true colors, resolution of 1024RGBx600.,graphical menu for easy and quick operation.
AI warning : AI Camera sends warning signals that trigger monitor built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver for safety alerts.
Video input: supports up to 6 video inputs and has real-time recording and playback functionality.
Full bonding process for Screen: the protective glass panel, touch screen and Screen of the monitor adopt a space free fully bonded process structure,Eliminate specular reflection to ensure clear and transparent image Screen.
Power and Protection: Operates within a wide voltage range of DC 8-32V. Features include pulse voltage protection against load disconnection, reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity.
Product Parameters
System Model
HDS-1034MDJ122MAI
HDS-1034J122MAI
Monitor Model
MHD-1034MDJ-64G
MHD-1034J
Display
10.1-inch IPS Screen
Resolution
1024×(RGB)×600
Video Input
4 channels (1080P/960P/720P/CVBS) of signal mixed input
Screen Modes
1/2/3/4-Screen Split
CAM 1 AI Alarm I/OInput
●Red (Danger), ●Yellow (Reminder), ●Green (Safe)
OSD Menu Functions
Mirror/Normal Settings, Reverse Delay Time, Trigger Priority, Multi-Language Support
Standard
PAL/NTSC (AUTO)
Viewing Angle (L/R, U/D)
L/R: 85/85; U/D: 85/85
Contrast Ratio
800:1
Brightness
600 (cd/㎡) Automatically Adjusts Based On Ambient Light
Response Time (ms)
25
Video Recording Format
AVI
/
Video Recording Capacity
Supports 16-512GB TF cards
(Standard 64G)
/
Recording Resolution
1080P/720P/480P
/
Load Reject
DC24+174V/350ms
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Input Power
DC11-32V
Dimensions (LxWxT)
265 x 168 x 37 (mm) (excluding bracket)
HD AI Pedestrian Detection Camera

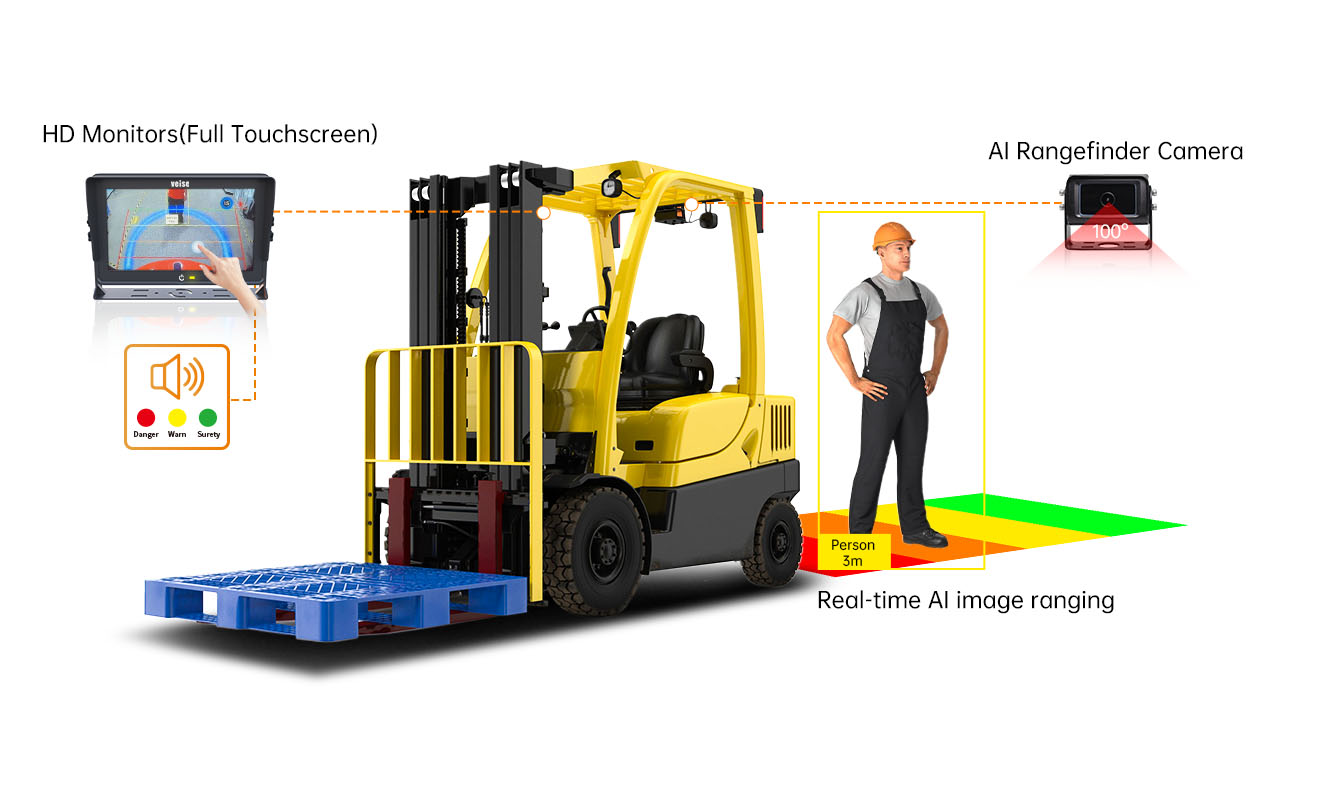

HD AI Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle, on the side, and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety!
Effective Pixels: 1920(H) x 1080(V)
Waterproof Rating: IP69K
AI Camera (CHD-122MAI)
Image Sensor
1/2.9 Color CMOS
Effective Pixels
1920(H) x 1080(V)
Horizontal Resolution
1080P
Field of View
100°
AI Alarm I/O Output
1-4 levels PWM
Detection Targets
Pedestrians/non-motorized vehicles
Detection Image Ranging
0-5 meters (customizable)
Signal-to-Noise Ratio
≥48dB (AGC Off)
Video Output
AHD 1080P
Housing Material
Aluminum alloy
Waterproof Rating
IP69K
Operating Voltage
DC 12V ±10%
Operating Temperature
-20°C to +60°C (RH95% Max)
Storage Temperature
-30°C to +70°C (RH95% Max)
Vibration Resistance
GB∕T 2423.56-2018 standard (random 5G vibration)
Body Interface
4-core aviation connector
Product Dimensions
74(W) x 64(H) x 56(D) mm
Video Power Connecting Cable
Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
